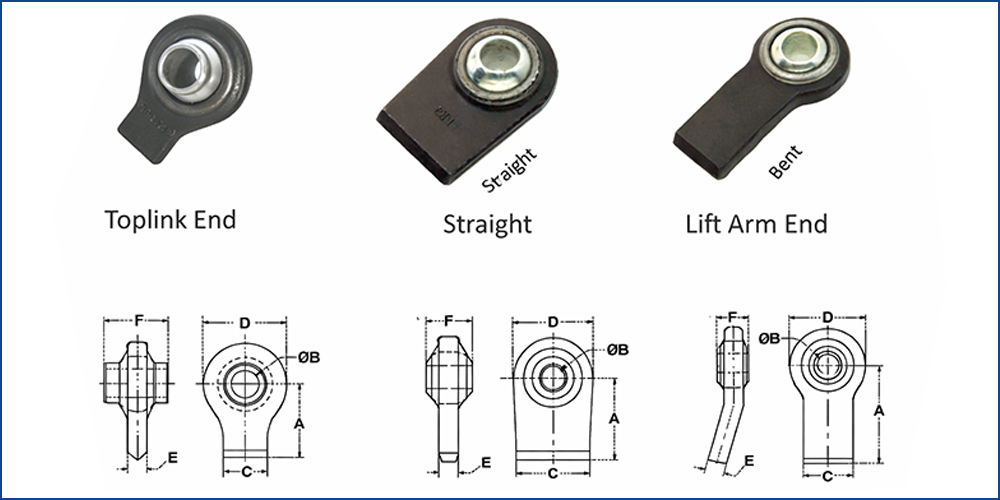

WELD ON ENDS/CYLINDER ENDS
Weltech Part No. |
Reference Number |
Popular Code |
Cat. |
Description |
Dim A (Inches) |
Dia ØB (Inches) |
Dim C (Inches) |
Dim D (Inches) |
Dim E (Inches) |
Dim F (Inches) |
Package (Qty.) |
Weight (Lbs.) |
WTWOE9198 |
87299198 |
RE1642 |
1 |
Top link end |
2" |
3/4" |
1-1/8" |
2-1/4" |
1/2" |
1-3/4" |
1 |
0.9 |
WTWOE9199 |
87299199 |
RE1643 |
2 |
Top link end |
2-3/8" |
1" |
1-1/8" |
2-5/8" |
1/2" |
2" |
1 |
1.4 |
WTWOE9200 |
87299200 |
LA3322 |
1 |
Lift arm end-straight |
2-3/4" |
7/8" |
2-3/8" |
2-5/8" |
5/8" |
1-3/8" |
1 |
1.7 |
WTWOE9201 |
87299201 |
LA3325 |
2 |
Lift arm end-straight |
3-1/8" |
1-1/8" |
2-3/4" |
3-1/8" |
3/4" |
1-3/4" |
1 |
2.8 |
WTWOE9204 |
87299204 |
LA3323 |
1 |
Lift arm end-bent |
4" |
7/8" |
1-7/8" |
2-5/8" |
5/8" |
1-3/8" |
1 |
2.0 |
WTWOE9205 |
87299205 |
LA3324 |
2 |
Lift arm end-bent |
4" |
1-1/8" |
1-7/8" |
3-1/8" |
5/8" |
1-3/4" |
1 |
2.7 |
WTWOE9206 |
87299206 |
LA3330 |
3 |
Lift arm end-straight |
3-3/8" |
1-7/16" |
3" |
3-1/2" |
3/4" |
1-3/4" |
1 |
3.0 |
WTWOE9207 |
– |
LA3320 |
1 |
Right Hand Lift Arm Repair End |
4-3/8” |
7/8” |
1-13/16” |
2-5/8" |
5/8" |
1-3/8” |
1 |
2.0 |
WTWOE9208 |
– |
LA3321 |
1 |
Left Hand Lift Arm Repair End |
4-3/8" |
7/8” |
1-13/16” |
2-5/8” |
5/8” |
1-3/8” |
1 |
2.0 |
