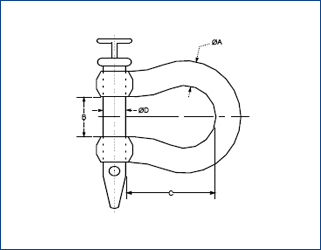

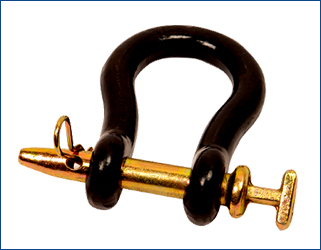

STRAIGHT CLEVISES
Weltech |
Reference |
Popular |
Body Dia |
Clevis Opening |
Usable Length |
Pin Dia |
Working Load Limit |
Package |
Weight |
WTSTCS9563 |
87299563 |
CL490103 |
5/8" |
7/8" |
3-1/4" |
1/2" |
6,000 |
1 |
1.50 |
WTSTCS9564 |
87299564 |
CL490104 |
3/4" |
1-5/16" |
3-3/4" |
5/8" |
12,000 |
1 |
2.50 |
WTSTCS9565 |
87299565 |
CL490105 |
7/8" |
1-5/16" |
3-1/4" |
3/4" |
16,000 |
1 |
3.00 |
WTSTCS9566 |
87299566 |
CL490106 |
7/8" |
1-5/16" |
4-1/4" |
3/4" |
16,000 |
1 |
3.60 |
WTSTCS9567 |
87299567 |
CL490107 |
15/16" |
1-7/16" |
4-5/8" |
7/8" |
20,000 |
1 |
4.30 |
WTSTCS9568 |
87299568 |
CL490108 |
1" |
2-1/8" |
5-5/16" |
1" |
25,000 |
1 |
5.80 |

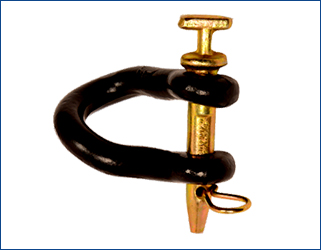

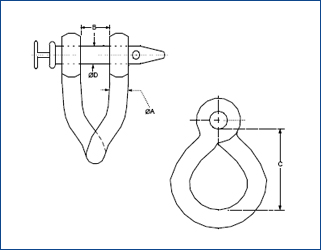

TWISTED CLEVISES
Weltech |
Reference |
Popular |
Body Dia |
Clevis Opening |
Usable Length |
Pin Dia |
Working Load Limit |
Package |
Weight |
WTTWCS9571 |
87299571 |
CL490203 |
5/8n |
7/8n |
3n |
1/2n |
6,000 |
1 |
1.50 |
WTTWCS9572 |
87299572 |
CL490204 |
3/4n |
1-5/16n |
3-1/2n |
5/8n |
12,000 |
1 |
2.50 |
WTTWCS9573 |
87299573 |
CL490205 |
7/8n |
1-5/16n |
3n |
3/4n |
16,000 |
1 |
3.00 |
WTTWCS9574 |
87299574 |
CL490206 |
7/8n |
1-5/16n |
3-7/8n |
3/4n |
16,000 |
1 |
3.60 |
WTTWCS9575 |
87299575 |
CL490207 |
15/16n |
1-7/16n |
4-1/4n |
7/8n |
20,000 |
1 |
4.30 |
WTTWCS9576 |
87299576 |
CL490208 |
1n |
2-1/8n |
5n |
1n |
25,000 |
1 |
5.80 |

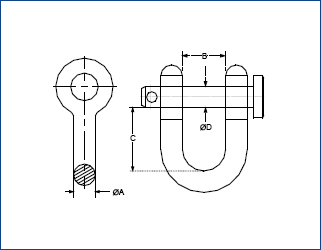

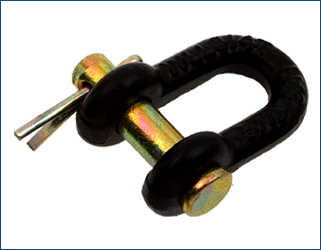

UTILITY CLEVISES
Weltech Part No. |
Reference No. |
Popular Code |
Body Dia ØA (Inches) |
Clevis Opening B (Inches) |
Usable Length C (Inches) |
Pin Dia ØD (Inches) |
Working Load Limit (lbs.) |
Package Qty. |
Weight (lbs.) |
WTUTCS9593 |
87299593 |
CL490301 |
1/4n |
15/32n |
7/8n |
5/16n |
1,000 |
1 |
0.10 |
WTUTCS9594 |
87299594 |
CL490302 |
5/16n |
17/32n |
1n |
3/8n |
1,500 |
1 |
0.20 |
WTUTCS9595 |
87299595 |
CL490303 |
3/8n |
21/32n |
1-1/4n |
7/16n |
2,000 |
1 |
0.30 |
WTUTCS9596 |
87299596 |
CL490304 |
7/16n |
23/32n |
1-1/2n |
1/2n |
3,000 |
1 |
0.40 |
WTUTCS9597 |
87299597 |
CL490305 |
1/2n |
13/16n |
1-11/16n |
5/8n |
6,000 |
1 |
0.60 |
WTUTCS9598 |
87299598 |
CL490306 |
5/8n |
1-1/16n |
2n |
3/4n |
9,000 |
1 |
1.20 |

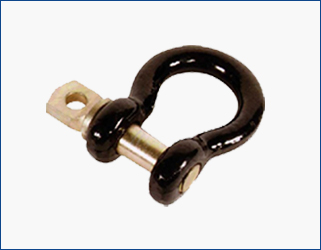

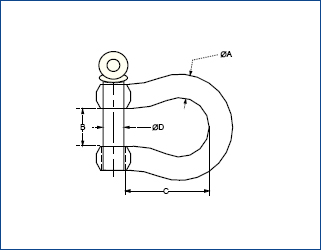

FARM CLEVISES
Weltech |
Reference |
Popular |
Body Dia |
Clevis Opening |
Usable Length |
Pin Dia |
Working Load Limit |
Package |
Weight |
WTFMCS9580 |
87299580 |
CL490401 |
1/4" |
15/32" |
1-1/8" |
5/16" |
1,000 |
1 |
0.10 |
WTFMCS9581 |
87299581 |
CL490402 |
5/16" |
17/32" |
1-1/4" |
3/8" |
2,000 |
1 |
0.20 |
WTFMCS9582 |
87299582 |
CL490403 |
3/8" |
23/32" |
1-7/16" |
7/16" |
3,000 |
1 |
0.30 |
WTFMCS9583 |
87299583 |
CL490404 |
7/16" |
3/4" |
1-11/16" |
1/2" |
4,000 |
1 |
0.50 |
WTFMCS9584 |
87299584 |
CL490405 |
1/2" |
13/16" |
1-15/16" |
5/8" |
6,500 |
1 |
0.70 |
WTFMCS9585 |
87299585 |
CL490406 |
5/8" |
1-1/16" |
2-1/2" |
3/4" |
9,000 |
1 |
1.50 |
WTFMCS9586 |
87299586 |
CL490407 |
3/4" |
1-1/4" |
3" |
7/8" |
13,000 |
1 |
2.20 |
WTFMCS9587 |
87299587 |
CL490408 |
7/8" |
1-7/16" |
3-1/4" |
1" |
15,000 |
1 |
3.50 |
WTFMCS9588 |
87299588 |
CL490409 |
1" |
1-11/16" |
3-3/4" |
1-1/8" |
17,000 |
1 |
5.20 |
WTFMCS9589 |
87299589 |
CL490410 |
1-1/8" |
1-13/16" |
4-1/4" |
1-1/4" |
24,000 |
1 |
7.00 |
WTFMCS9590 |
87299590 |
CL490411 |
1-1/4" |
2" |
4-1/2" |
1-3/8" |
28,000 |
1 |
9.50 |
