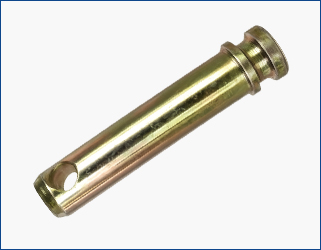

TOP LINK PIN
Ø Sizes and styles for Category 0 through 3 tractors.
Ø Yellow zinc dichromate plated.
Weltech |
Reference |
Popular |
Cat. |
Description |
Pin Dia |
Usable Length |
Overall Length |
Package |
Bulk Weight |
| WLTTLP9306 | 87299306 | P776 | 0 | Top link pin | 5/8" | 3" | 4-7/16" | 5 | 0.4 |
| WLTTLP9307 | 87299307 | P771 | 1 | Replaces Ford 9N-560, Ferguson 195647M1 | 3/4" | 2-3/4" | 4-1/2" | 5 | 0.5 |
| WLTTLP9309 | 87299309 | 1 | Top link pin | 3/4" | 3" | 5-1/4" | 5 | 0.6 | |
| WLTTLP9310 | 87299310 | P772 | 1 | Long top link pin; replaces Ferguson 195589M1, AC339942 | 3/4" | 3-7/8" | 5-1/2" | 5 | 0.6 |
| WLTTLP9313 | 87299313 | P7715 | 1 | Extra-long top link pin; replaces Ford E381T9 | 3/4" | 4-5/8" | 6-3/8" | 5 | 0.8 |
| WLTTLP9314 | 87299314 | P7716 | 2 | Replaces Ford C5NN560A, MF185873M91, AC2090149/239888 | 1" | 3-9/16" | 5-1/4" | 5 | 1.2 |
| WLTTLP9315 | 87299315 | P7719 | 2 | Replaces Ford E27N995272 | 1" | 3" | 4-3/4" | 5 | 1.1 |
| WLTTLP9316 | 87299316 | P774 | 2 | Replaces Ford C5NN486A | 1" | 4-3/8" | 6" | 5 | 1.3 |
| WLTTLP9318 | 87299318 | P7720 | 2 | Replaces Ford E2016F9, AC345552 | 1" | 5-3/8" | 7-1/16" | 5 | 1.5 |
| WLTTLP9319 | 87299319 | B500182 | 2 | Top link pin | 1" | 4-1/4" | 6-1/8" | 5 | 0.8 |
| WLTTLP9320 | 87299320 | P7711 | 3 | Top link pin | 1-1/4" | 4-5/8" | 6-1/2" | 5 | 2.1 |

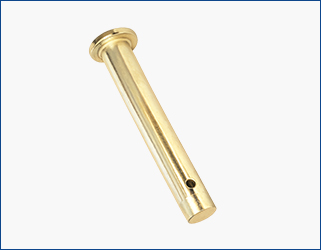

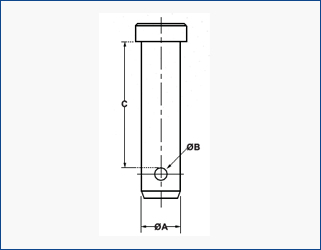

HITCH PIN
Ø Yellow zinc dichromate plated.
Ø An economy hitch pin (clevis pin) for numerous applications.
Weltech |
Reference |
Popular |
Pin Dia |
Usable Length |
Overall Length |
Package |
Weight |
| WLTHP9720 | 87299720 | P7100 | 1/2" | 5" | 6-3/8" | 1 | 0.4 |
| WLTHP9721 | 87299721 | P7101 | 5/8" | 5" | 6-3/8" | 1 | 0.6 |
| WLTHP9722 | 87299722 | P7102 | 3/4" | 5" | 6-3/8" | 1 | 0.8 |
| WLTHP9723 | 87299723 | P7103 | 7/8" | 5" | 6-3/8" | 1 | 1.0 |
| WLTHP9724 | 87299724 | P7104 | 1" | 5" | 6-3/8" | 1 | 1.4 |
| WLTHP9725 | 87299725 | P7105 | 1-1/8" | 5" | 6-3/8" | 1 | 1.7 |

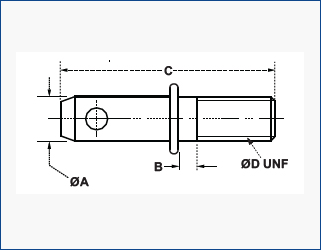

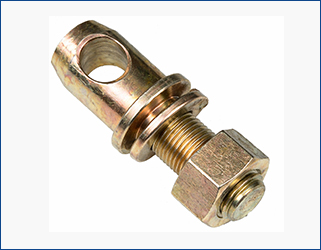

STABILIZER PIN
Ø Stabilizer stub pins for Ford, Ferguson and other stabilizer kits.
Ø Yellow zinc dichromate plated.
Weltech |
Reference |
Popular |
Description |
Pin Dia |
Usable Length |
Overall Length |
Thread Dia |
Package |
Bulk Weight |
| WLTSP9259 | 87299259 | P781 | Replaces Ford 230044, Massey-Ferguson 18177M1 | 7/8" | 3/8" | 2-5/8" | 5/8" NF | 5 | 0.39 |
| WLTSP9261 | 87299261 | P785 | Replaces Ford 141185, Massey-Ferguson MF668154M1 | 7/8" | 1-1/4" | 3-1/8" | 5/8" NF | 5 | 0.40 |
| WLTSP9262 | 87299262 | P787 | Stabilizer stub pin | 7/8" | 1/2" | 2-5/8" | 5/8" NF | 5 | 0.30 |
| WLTSP9263 | 87299263 | P788 | Replaces MF186802M1 | 7/8" | 11/16" | 3-1/8" | 3/4" NF | 5 | 0.40 |
| WLT | — | P711 | 7/8" | 1/2" | 3-1/4" | 7/8" NF | 5 | 0.80 |

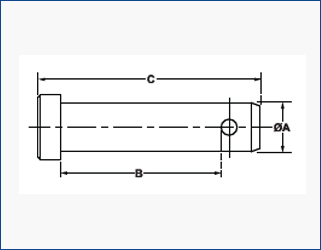

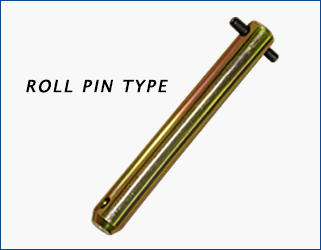

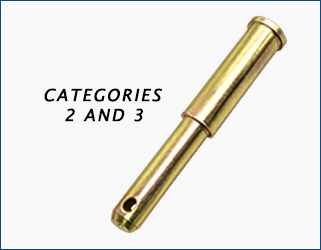

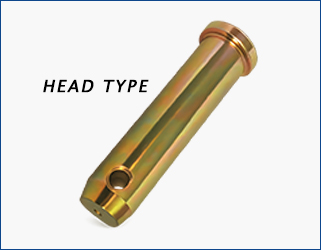

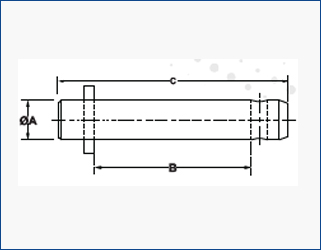

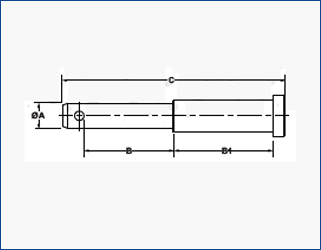

CLEVIS TYPE DRAW PIN
Ø For use with implements with yoke type mountings.
Ø All pins are yellow zinc dichromate plated.
Weltech |
Reference |
Popular |
Cat. |
Type |
Pin Dia |
Usable Length |
Overall Length |
Package |
Bulk Weight |
| WLTCP9294 | 87299294 | P7234 | 1 | Roll Pin | 7/8" | 4-1/2" | 6" | 1 | 0.9 |
| WLTCP9295 | 87299295 | P7235 | 2 | Roll Pin | 1-1/8" | 3-5/16" | 4-3/4" | 2 | 1.2 |
| WLTCP9296 | 87299296 | P7236 | 2 | Roll Pin | 1-1/8" | 4-3/4" | 6-1/2" | 1 | 1.7 |
| WLTCP9297 | 87299297 | P7237 | 2 | Roll Pin | 1-1/8" | 5-3/8" | 7" | 2 | 1.9 |
| WLTCP9298 | 87299298 | P7238 | 2 | Roll Pin | 1-1/8" | 7-3/8" | 9" | 1 | 2.4 |
| WLTCP9299 | 87299299 | P7239 | 2 | Roll Pin | 1-1/8" | 9" | 10-3/4" | 2 | 2.9 |
| WLTCP9300 | 87299300 | P7230 | 3 | Head | 1-7/16" | 4-11/16" | 6" | 1 | 2.8 |
| WLTCP9301 | 87299301 | P7710 | 3 | Roll Pin | 1-7/16" | 3-3/8" | 5-3/8" | 2 | 2.3 |
| WLTCP9302 | 87299302 | P7231 | 3 | Roll Pin | 1-7/16" | 6-1/4" | 8-1/2" | 2 | 3.8 |
| WLTCP9303 | 87299303 | P7250 | 2 & 3 | Head | 1-1/8" & 1-7/16" | 3-5/8" & 4-1/4" | 9-1/4" | 1 | 3.4 |
DETENT PIN
| Weltech Part No. |
Reference Number |
Popular Code |
Pin Dia ØA (Inches) |
Usable Length B (Inches) |
Overall length C (Inches) |
Package Qty. |
Bulk Weight (lbs.) |
| WLTDTP265E | SPC71265E | P71265 | 7/16" | 2" | 3-7/32" | 5 | 1.9 |
| WLTDTP267E | SPC71267E | P71267 | 7/16" | 2-1/2" | 3-7/32" | 5 | 2.2 |
| WLTDTP269E | SPC71269E | P71269 | 7/16" | 3" | 3-23/32" | 5 | 2.6 |
| WLTDTP271E | SPC71271E | P71271 | 7/16" | 4" | 4-23/32" | 5 | 3.3 |
| WLTDTP273E | SPC71273E | P71273 | 7/16" | 5" | 5-23/32" | 5 | 4.0 |
| WLTDTP280E | SPC71280E | P71280 | 1/2" | 1" | 1-25/32" | 5 | 1.7 |
| WLTDTP281E | SPC71281E | P71281 | 1/2" | 1-1/2" | 2-9/32" | 5 | 2.2 |
| WLTDTP282E | SPC71282E | P71282 | 1/2" | 2" | 2-25/32" | 5 | 2.5 |
| WLTDTP283E | SPC71283E | P71283 | 1/2" | 2-1/2" | 3-9/32" | 5 | 3.2 |
| WLTDTP284E | SPC71284E | P71284 | 1/2" | 3" | 3-25/32" | 5 | 3.4 |
| WLTDTP286E | SPC71286E | P71286 | 1/2" | 4" | 4-25/32" | 5 | 4.4 |

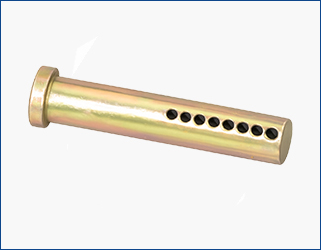

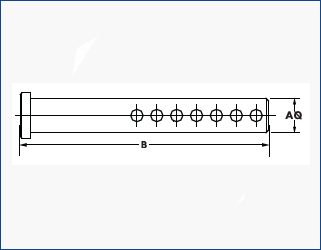

UNIVERSAL CLEVIS PIN
Ø Yellow zinc dichromate plated.
Ø Multiple holes allow user to cut off excess length.
Ø Can be used as an adjustable replacement pin.
Weltech |
Reference |
Popular |
Pin Dia |
Overall Length |
Package |
Weight |
| WLTUCP411E | SPC7411E | P7411 | 1/4" | 2" | 10 | 0.02 |
| WLTUCP412E | SPC7412E | P7412 | 5/16" | 2" | 10 | 0.04 |
| WLTUCP413E | SPC7413E | P7413 | 3/8" | 2" | 10 | 0.05 |
| WLTUCP414E | SPC7414E | P7414 | 7/16" | 2" | 10 | 0.08 |
| WLTUCP415E | SPC7415E | P7415 | 1/2" | 2" | 10 | 0.11 |
| WLTUCP416E | SPC7416E | P7416 | 1/2" | 2-1/2" | 10 | 0.14 |
| WLTUCP417E | SPC7417E | P7417 | 7/16" | 2-1/2" | 10 | 0.13 |
| WLTUCP418E | SPC7418E | P7418 | 7/16" | 3" | 10 | 0.14 |
| WLTUCP419E | SPC7419E | P7419 | 1/2" | 3" | 10 | 0.15 |
| WLTUCP420E | SPC7420E | P7420 | 5/8" | 3" | 10 | 0.16 |
| WLTUCP421E | SPC7421E | P7421 | 3/4" | 3" | 10 | 0.16 |

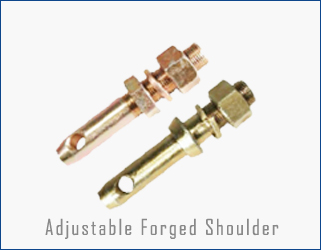

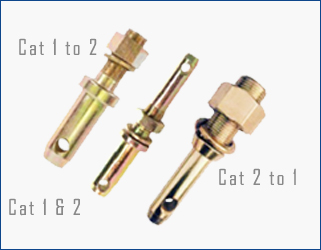

LIFT ARM PIN
Ø All pins are yellow zinc dichromate plated.
Ø Forged and adjustable Category 0 through 3 draw pins for a variety of applications.
Weltech |
Reference |
Popular |
Cat. |
Description |
Pin Dia |
Usable Length |
Overall Length |
Thread Length |
Thread Dia |
Package |
Weight |
| WLTLAP9266 | 87299266 | P7220 | 0 | Adjustable | 5/8" | Adjustable | 3-7/8" | 2" | 5/8" NF | 1 | 0.4 |
| WLTLAP9268 | 87299268 | P7221 | 0 to 1 | Adjustable | 7/8" | 1-3/4" | 4-1/2" | 1-1/8" | 5/8" NF | 5 | 0.6 |
| WLTLAP9269 | 87299269 | P7224 | 1 to 0 | Adjustable | 5/8" | 2" | 5" | 2" | 7/8" NF | 5 | 0.6 |
| WLTLAP9270 | 87299270 | P722 | 1 | Adjustable | 7/8" | Adjustable | 5" | 2-1/4" | 7/8" NF | 1 | 1.1 |
| WLTLAP9272 | 87299272 | P728 | 1 | Forged | 7/8" | 1-3/4" | 5-1/2" | 2-5/8" | 7/8" NF | 1 | 1.1 |
| WLTLAP9274 | 87299274 | P7219 | 1 | Adjustable; extra long | 7/8" | Adjustable | 6-1/4" | 1-5/8" | 7/8" NF | 1 | 1.3 |
| WLTLAP9275 | 87299275 | P7245 | 1 | Forged; extra long | 7/8" | 2-1/4" | 6-1/2" | 3-1/2" | 7/8" NF | 1 | 1.3 |
| WLTLAP9277 | 87299277 | P7244 | 1 | Forged | 7/8" | 2-3/4" | 5-1/8" | 2-1/4" | 5/8" NF | 5 | 0.9 |
| WLTLAP9278 | 87299278 | P7247 | 1 | Forged | 7/8" | 2" | 5" | 1-3/8" | 5/8" NF | 1 | 0.9 |
| WLTLAP9279 | 87299279 | P7248 | 1 | Forged | 7/8" | 1-3/4" | 4-1/2" | 1-1/2" | 5/8" NF | 1 | 0.8 |
| WLTLAP9280 | 87299280 | P7246 | 1 to 2 | Forged | 1-1/8" | 2-1/4" | 6-5/16" | 5/8" | 7/8" NF | 1 | 1.5 |
| WLTLAP9281 | 87299281 | P724 | 1 to 2 | Adjustable | 1-1/8" | Adjustable | 5-1/4" | 2-1/4" | 7/8" NF | 1 | 1.4 |
| WLTLAP9282 | 87299282 | P7240 | 1 to 2 | Forged | 1-1/8" | 1-13/16" | 5-1/4" | 2-7/16" | 7/8" NF | 1 | 1.5 |
| WLTLAP9283 | 87299283 | P7249 | 1 & 2 | Forged | 1-1/8" & 7/8" | 2-1/16" both | 8" | 1-5/8" | 1" NF | 1 | 1.9 |
| WLTLAP9284 | 87299284 | P721 | 2 | Adjustable | 1-1/8" | Adjustable | 6-1/8" | 1-1/4" | 1-1/8" NF | 1 | 2.3 |
| WLTLAP9285 | 87299285 | P729 | 2 | Adjustable; extra long | 1-1/8" | Adjustable | 7-1/2" | 3-3/8" | 1-1/8" NF | 5 | 2.6 |
| WLTLAP9286 | 87299286 | P7212 | 2 | Forged | 1-1/8" | 1-3/4" | 6-1/8" | 4-1/2" | 1-1/8" NF | 1 | 2.3 |
| WLTLAP9288 | 87299288 | P726 | 2 to 1 | Forged | 7/8" | 1-3/4" | 5-3/4" | 2-3/8" | 1-1/8" NF | 1 | 1.8 |
| WLTLAP9289 | 87299289 | P7211 | 2 to 3 | Adjustable | 1-7/16" | Adjustable | 6-1/2" | 2-3/8" | 1-1/8" NF | 3 | 2.9 |
| WLTLAP9290 | 87299290 | P7243 | 2 to 3 | Forged | 1-7/16" | 1-7/8" | 5-3/4" | 3-3/8" | 1-1/8" NF | 1 | 3.0 |
| WLTLAP9291 | 87299291 | P7229 | 3 | Forged | 1-7/16" | 2" | 5-7/8" | 1-1/2" | 1-3/8" NF | 1 | 3.5 |

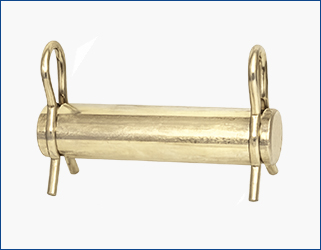

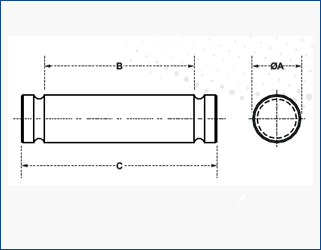

HYDRAULIC CYLINDER PIN
Ø Pins for hydraulic cylinders and jacks in popular sizes.
Ø Standard cylinder clips included.
Ø Will accommodate “R” clip pin.
Ø Yellow zinc dichromate plated.
Weltech |
Reference |
Popular |
Pin Dia |
Usable Length |
Overall Length |
Package |
Bulk Weight |
| WLTHCP9427 | 87299427 | P7712 | 1" | 2" | 2-3/4" | 5 | 0.6 |
| WLTHCP9428 | — | P7736 | 1" | 2-1/8" | 2-15/16" | 5 | 0.5 |
| WLTHCP9429 | — | P7738 | 1" | 2-1/4" | 3-1/16" | 5 | 0.6 |
| WLTHCP9430 | 87299430 | P7729 | 1" | 2-3/4" | 3-9/16" | 5 | 0.8 |
| WLTHCP9431 | 87299431 | P7743 | 1" | 2-7/8" | 3-11/16" | 5 | 0.8 |
| WLTHCP9432 | 87299432 | P7744 | 1" | 3" | 3-13/16" | 5 | 0.9 |
| WLTHCP9433 | 87299434 | P7713 | 1" | 3-1/8" | 3-15/16" | 5 | 0.9 |
| WLTHCP9434 | 87299435 | P7746 | 1" | 3-1/4" | 4-1/16" | 5 | 0.9 |
| WLTHCP9435 | 87299435 | P7731 | 1-1/8" | 1-15/16" | 2-3/8" | 5 | 0.8 |
| WLTHCP9436 | 87299436 | P7750 | 1-1/4" | 3-1/4" | 4-1/16" | 5 | 1.4 |
