Draw Bar / Swinging Draw Bar

3 Point Linkage Parts

DRAW BAR / SWINGING DRAW BAR

Weltech
Part No.
Reference
Number

Popular
Code

Cat.

No. Of
Holes

Lift Arm Spacing
A (Inches)

Hole Dia
ØB (Inches)

Pin Dia
ØC (Inches)

Thichness
D (Inches)

Width
E (Inches)

Color

Package
Qty.

Weight
(lbs.)
WTDB9225
-

DB418

0

7

20"

5/8”

5/8"

5/8”

2”

Red

1

6.8
WTDB9226
87299226

DB419

0/1

7

20"

3/4"

7/8"

1"

2-1/2"

Black

1

13.5
WTDB9227
87299227

DB411

1

11

26"

3/4"

7/8"

1"

2-1/2"

Blue

1

16.4
WTDB9228
87299228

B500236

1

11

26"

3/4"

7/8"

1"

2-1/2"

Black

1

16.4
WTDB9232
87299232

DB421

2

11

26"

3/4"

1-1/8"

1-1/4"

3"

Blue

1

27
WTDB9233
87299233

B500237

2

11

26"

3/4"

1-1/8"

1-1/4"

3"

Black

1

27
WTDB9236
87299236

DB422

2

13

32"

3/4"

1-1/8"

1-1/4"

3"

Blue

1

33
WTDB9237
87299237

DB4212

2

13

32"

3/4"

1-1/8"

1-1/4"

3"

Black

1

33
WTDB9239
87299239

DB431

3

5

38"

1-1/4"

1-7/16"

1-3/4"

3-1/2"

Black

1

65

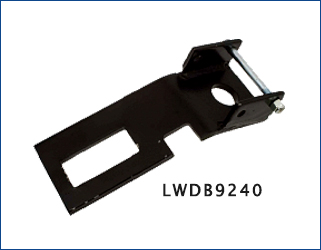

WTDB9240
87299240

DB4130

1

Drawbar lock

Black

1

4

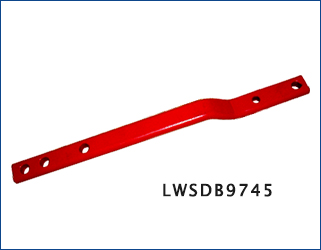

WTDB9745
87299745

SD921



Swinging drawbar, fits Ford 2N, 8N, 9N, NAA, 630, 631, 640, 641, 650,651,
660 and 661, Ferguson TO20, TP030, Massey Ferguson 35 and 50,
30" overall length, 3/4" first hitch pin hole, 5/8" second hitch pin hole.

Black

1

16
