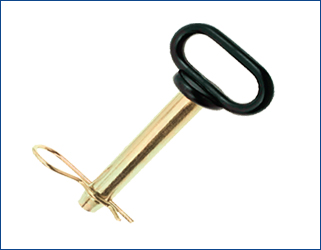

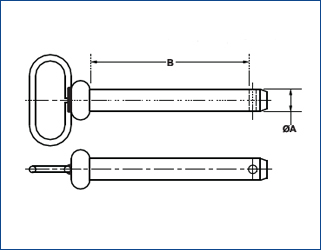

FIXED HANDLE HITCH PINS
FIXED HANDLE HITCH PINS
Weltech |
Reference |
Popular |
Pin Dia |
Usable Length |
Overall Length |
Package |
Weight |
| WLTFHP9754 | 87299754 | P71011WC | 1/2" | 4-1/4" | 5-1/4" | 1 | 0.4 |
| WLTFHP9755 | 87299755 | P71021WC | 5/8" | 4-1/4" | 5-1/4" | 1 | 0.6 |
| WLTFHP9756 | 87299756 | P71022WC | 5/8" | 6-1/4" | 7-1/4" | 1 | 0.8 |
| WLTFHP9757 | 87299757 | P71031WC | 3/4" | 4-1/4" | 5-1/2" | 1 | 1.1 |
| WLTFHP9758 | 87299758 | P71032WC | 3/4" | 6-1/4" | 7-1/4" | 1 | 1.1 |
| WLTFHP9759 | 87299759 | P71041WC | 7/8" | 4-1/4" | 5-1/4" | 1 | 1.2 |
| WLTFHP9760 | 87299760 | P71042WC | 7/8" | 6-1/4" | 7-1/4" | 1 | 1.4 |
| WLTFHP9761 | 87299761 | P71051WC | 1" | 4-1/4" | 5-1/4" | 1 | 1.8 |
| WLTFHP9762 | 87299762 | P71052WC | 1" | 6-1/4" | 7-1/4" | 1 | 2.0 |
| WLTFHP9763 | 87299763 | P71062WC | 1-1/8" | 6-1/4" | 7-1/4" | 1 | 2.2 |

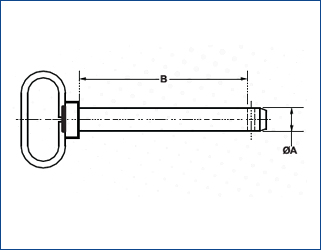

HITCH PIN(RED HANDLE PLASTIC COATED)
HITCH PIN (RED HANDLE PLASTIC COATED)
Weltech |
Reference |
Popular |
Pin Dia |
Usable Length |
Overall Length |
Package |
Weight |
| WLTHPR9350 | 87299350 | P700511 | 1/2" | 3-5/8" | 6-5/8" | 1 | 0.7 |
| WLTHPR9351 | 87299351 | P700521 | 5/8" | 4" | 7" | 1 | 0.9 |
| WLTHPR9352 | 87299352 | P700522 | 5/8" | 5-3/4" | 9" | 1 | 1.1 |
| WLTHPR9354 | 87299354 | P700531 | 3/4" | 4" | 7" | 1 | 1.1 |
| WLTHPR9356 | 87299356 | P700532 | 3/4" | 6-1/2" | 9-1/2" | 1 | 1.5 |
| WLTHPR9358 | 87299358 | P700541 | 7/8" | 4-1/4" | 7-1/4" | 1 | 1.4 |
| WLTHPR9359 | 87299359 | P700542 | 7/8" | 6-1/2" | 9-1/2" | 1 | 1.9 |
| WLTHPR9361 | 87299361 | P700551 | 1" | 4-3/4" | 7-3/4" | 1 | 1.9 |
| WLTHPR9362 | 87299362 | P700552 | 1" | 7-1/2" | 10" | 1 | 2.6 |
| WLTHPR9364 | 87299364 | P700562 | 1-1/8" | 8-1/2" | 11-1/2" | 1 | 3.3 |
| WLTHPR9366 | 87299366 | P700572 | 1-1/4" | 8-1/2" | 11-1/2" | 1 | 4.1 |
| WLTHPR9367 | 87299367 | P700582 | 1-1/2" | 8-1/2" | 11-1/2" | 1 | 5.0 |
| WLTHPR9368 | 87299368 | B96501 | 1-3/4" | 8-1/2" | 12" | 1 | 5.5 |
| WLTHPR9369 | 87299369 | B96502 | 2" | 8-1/2" | 12" | 1 | 5.9 |
| WLTHPR9370 | 87299370 | — | 1" | 12" | 15" | 1 | 3.5 |
| WLTHPR9371 | 87299371 | — | 1-1/4" | 12" | 15" | 1 | 6.6 |
| WLTHPR9372 | 87299372 | — | 1-1/2" | 13" | 16" | 1 | 7.7 |

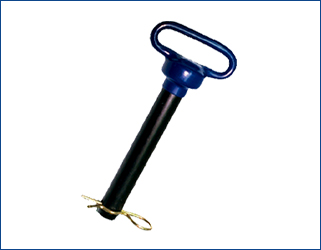

HITCH PIN (BLUE HANDLE PLASTIC COATED)
HITCH PIN (BLUE HANDLE PLASTIC COATED)
Ø Pin has black powder coating with a Blue / Gray vinyl coated head and handle.
Ø Zinc plated “R” clip pin included.
Ø Our premium, Heat Treated, GRADE 8 performance hitch pin made from alloy steel is designed for the toughest applications.
Weltech |
Reference |
Popular |
Pin Dia |
Usable Length |
Overall Length |
Package |
Weight |
| WLTHPB9812 | 87299812 | P700811 | 1/2" | 3-5/8" | 6-5/8" | 1 | 0.7 |
| WLTHPB9813 | 87299813 | P700821 | 5/8" | 4" | 7" | 1 | 0.9 |
| WLTHPB9814 | 87299814 | P700822 | 5/8" | 6" | 9" | 1 | 1.0 |
| WLTHPB9815 | 87299815 | P700831 | 3/4" | 4" | 7" | 1 | 1.2 |
| WLTHPB9816 | 87299816 | P700832 | 3/4" | 6-1/2" | 9-1/2" | 1 | 1.2 |
| WLTHPB9817 | 87299817 | P700841 | 7/8" | 4-1/4" | 7-1/4" | 1 | 1.4 |
| WLTHPB9818 | 87299818 | P700842 | 7/8" | 6-1/2" | 9-1/2" | 1 | 1.9 |
| WLTHPB9819 | 87299819 | P700851 | 1" | 4-3/4" | 7-3/4" | 1 | 1.9 |
| WLTHPB9820 | 87299820 | P700852 | 1" | 7" | 10" | 1 | 2.4 |
| WLTHPB9821 | 87299821 | P700862 | 1-1/8" | 7" | 10" | 1 | 3.0 |
| WLTHPB9822 | 87299822 | P700872 | 1-1/4" | 7" | 10" | 1 | 3.0 |
| WLTHPB9823 | 87299823 | P700882 | 1-1/2" | 8-1/2" | 11-1/2" | 1 | 5.8 |

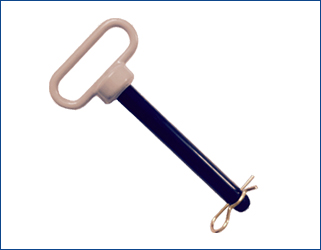

HITCH PIN (GREY HANDLE PLASTIC COATED)
HITCH PIN (GREY HANDLE PLASTIC COATED)
Ø Our premium, Heat Treated, GRADE 8 performance hitch pin made from alloy steel is designed for the toughest applications.
Ø Pin has black powder coating with a Blue / Gray vinyl coated head and handle.
Ø Zinc plated “R” clip pin included.
Weltech |
Reference |
Popular |
Pin Dia |
Usable Length |
Overall Length |
Package |
Weight |
| WLTHPG8037 | 87298037 | HD9613574DS | 1/2" | 3-5/8" | 6-5/8" | 1 | 0.7 |
| WLTHPG8038 | 87298038 | HD9613575DS | 5/8" | 4" | 7" | 1 | 0.9 |
| WLTHPG8039 | 87298039 | HD9613579DS | 5/8" | 6" | 9" | 1 | 1.0 |
| WLTHPG8040 | 87298040 | HD9613576DS | 3/4" | 4" | 7" | 1 | 1.2 |
| WLTHPG8041 | 87298041 | HD9613580DS | 3/4" | 6-1/2" | 9-1/2" | 1 | 1.2 |
| WLTHPG8042 | 87298042 | HD9613577DS | 7/8" | 4-1/4" | 7-1/4" | 1 | 1.4 |
| WLTHPG8043 | 87298043 | HD9613581DS | 7/8" | 6-1/2" | 9-1/2" | 1 | 1.9 |
| WLTHPG8044 | 87298044 | HD9613578DS | 1" | 4-3/4" | 7-3/4" | 1 | 1.9 |
| WLTHPG8045 | 87298045 | HD9613582DS | 1" | 7" | 10" | 1 | 2.4 |
| WLTHPG8046 | 87298046 | HD9613583DS | 1-1/8" | 7" | 10" | 1 | 3.0 |
| WLTHPG8047 | 87298047 | HD9613584DS | 1-1/4" | 7" | 10" | 1 | 3.0 |
| WLTHPG8048 | 87298048 | HD9624593DS | 1-1/2" | 8-1/2" | 11-1/2" | 1 | 5.8 |
