PTO ADAPTERS & ACCESSORIES
PTO ADAPTERS & ACCESSORIES
Ø Yellow zinc dichromate plated.
Weltech |
Popular |
Description |
Male |
Female |
Extends |
Overall |
Max |
Weight |
| WLTPTO1660 | SP1660 | Sleeve increaser; Ford 231082 | 1-3/8" x 6 | 1-3/8" x 6 | 0 | 2" | 75 | 0.2 |
| WLTPTO1662 | SP1662 | Sleeve increaser; all tractors except Ford | 1-3/8" x 6 | 1-3/8" x 6 | 0 | 2-1/4" | 75 | 0.2 |
| WLTPTO1663 | SP1663 | PTO spline adapter; converts 21 spline 1000 RPM to 6 spline 540 RPM | 1-3/8" x 6 | 1-3/8" x 21 | 3-1/4" | 5-7/8" | 75 | 2.0 |
| WLTPTO1664 | SP1664 | Universal reducer | 1-1/8" x 6 | 1-3/8" x 6 | 3-5/16" | 5-1/8" | 75 | 1.4 |
| WLTPTO1665 | SP1665 | PTO increaser | 1-3/8" x 6 | 1-1/8" x 6 | 3-5/8" | 5-1/2" | 75 | 1.3 |
| WLTPTO1666 | SP1666 | PTO short increaser | 1-3/8" x 6 | 1-1/8" x 6 | 1-1/8" | 3-1/4" | 75 | 0.6 |
| WLTPTO1667 | SP1667 | PTO spline adapter; 20 to 6 spline; set screw lock | 1-3/8" x 6 | 1-3/4" x 20 | 4-5/8" | 7-1/2" | 75 | 6.1 |
| WLTPTO1668 | SP1668 | PTO extender | 1-3/8" x 6 | 1-3/8" x 6 | 3-5/16" | 5-1/8" | 75 | 2.2 |
| WLTPTO16610 | SP16610 | PTO spline adapter with quick-release; converts 21 spline 1000 RPM to 6 spline 540 RPM | 1-3/8" x 6 | 1-3/8" x 21 | 3-7/8" | 6-1/2" | 75 | 2.5 |
| WLTPTO16611 | SP16611 | PTO spline adapter with quick-release; converts 6 spline 540 RPM to 21 spline 1000 RPM | 1-3/8" x 21 | 1-3/8" x 6 | 4-1/8" | 6-1/2" | 75 | 2.5 |
| WLTPTO16612 | SP16612 | PTO extender with quick-release | 1-3/8" x 6 | 1-3/8" x 6 | 4-3/8" | 6-1/2" | 75 | 2.8 |
| WLTPTO16613 | SP16613 | PTO extender with quick-release; 21 spline 1000 RPM | 1-3/8" x 21 | 1-3/8" x 21 | 4-1/8" | 5-7/8" | 75 | 3.2 |
| WLTPTO16615 | SP16615 | PTO spline adapter; 20 to 21 spline; set screw lock | 1-3/8" x 21 | 1-3/4" x 20 | 4-5/8" | 7" | 75 | 4.2 |
| WLTPTO16646 | SP16646 | Splined adapter; extended length for use with Gresen pump | 1-3/8" x 6 | 1-3/8" x 6 | 11-5/8" | 15" | 75 | 6.0 |
| WLTPTO16630 | SP16630 | Over-running clutch; maximum 1000 RPM operating speed | 1-3/8" x 6 | 1-3/8" x 6 | 3-13/16" | 6-1/2" | 75 | 5.0 |
| WLTPTO16631 | SP16631 | Over-running clutch; maximum 1000 RPM operating speed | 1-3/8" x 6 | 1-1/8" x 6 | 3-13/16" | 6-1/2" | 75 | 5.0 |
| WLTPTO16660 | SP16660 | Over-running clutch with quick-release; maximum 1000 RPM operating speed | 1-3/8" x 6 | 1-3/8" x 6 | 4-1/2" | 6-3/4" | 75 | 7.2 |
| WLTPTO16661 | SP16661 | Over-running clutch with quick-release; maximum 1000 RPM operating speed | 1-3/8" x 6 | 1-1/8" x 6 | 4-1/2" | 6-3/4" | 75 | 7.1 |

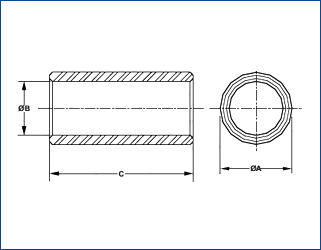

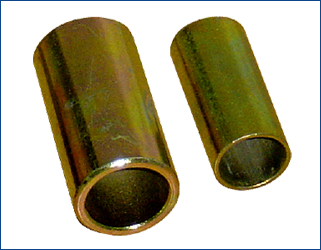

TOPLINK REDUCER BUSHINGS
TOP LINK REDUCER BUSHINGS
Ø Used in the pin hole of a top link to allow a smaller Category pin to fit.
Ø Yellow zinc dichromate plating.
Weltech |
Reference |
Popular |
Cat. |
Description |
Outside Dia |
Inside Dia |
Length |
Package |
Bulk Weight |
| WLTTRB9208 | 87299208 | B829 | 0-1 | Fits all Category 0 top link pins | 3/4" | 5/8" | 1-5/8" | 5 | 0.1 |
| WLTTRB9209 | 87299209 | B831 | 1-2 | Fits all Category 1 top link pins; short | 1" | 3/4" | 1-15/16" | 5 | 0.2 |
| WLTTRB9210 | 87299210 | B8220 | 1-2 | Fits all Category 2 top link pins | 1" | 3/4" | 1-5/8" | 5 | 0.2 |
| WLTTRB9211 | 87299211 | B833 | 2-3 | Fits all Category 1 top link pins; replaces Ford C7NN6993A | 1-1/4" | 1" | 1-15/16" | 5 | 0.2 |

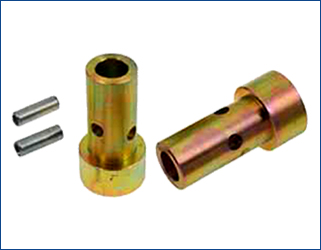

QUICK HITCH ADAPTOR BUSHINGS
QUICK HITCH ADAPTOR BUSHINGS
Ø Yellow zinc dichromate plating.
Weltech |
Popular |
Cat. |
Description |
Inside Dia |
Length |
Weight |
| WLTS141142 | HF141142 | 1 | Adapter bushing for cat. 1 Quick Hitch | 7/8" | 4" | 1.5 |
| WLTS141127 | HF141127 | 2 | Adapter bushing for cat. 2 Quick Hitch | 1-1/8" | 4" | 1 |

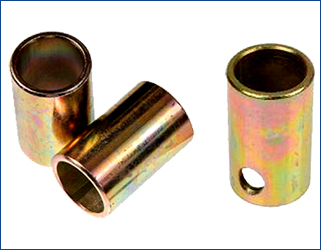

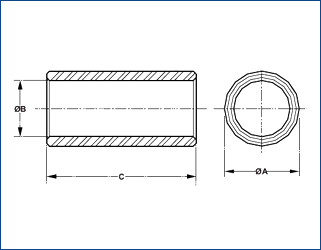

LIFT ARM REDUCER BUSHINGS
LIFT ARM REDUCER BUSHINGS
Ø Used in the pin hole of a lift arm to allow a smaller Category pin to fit.
Ø Yellow zinc dichromate plating.
Weltech |
Reference |
Popular |
Cat. |
Description |
Outside Dia |
Inside Dia |
Length |
Package |
Bulk Weight |
| WLTLRB9214 | 87299214 | B828 | 0-1 | Fits all Category 0 lift arm pins | 7/8" | 5/8" | 1-3/8" | 5 | 0.1 |
| WLTLRB9215 | 87299215 | B821 | 1-2 | Fits all Category 1 lift arm pins; Ford C7NN6992A | 1-1/8" | 7/8" | 1-3/4" | 5 | 0.2 |
| WLTLRB9216 | 87299216 | B8221 | 1-2 | Fits all Category 1 lift arm pins; replaces John Deere F2684 | 1-1/8" | 7/8" | 1-3/8" | 5 | 0.2 |
| WLTLRB9217 | 87299217 | B832 | 2-3 | Fits all Category 2 lift arm pins | 1-7/16" | 1-1/8" | 1-3/4" | 5 | 0.3 |
| WLTLRB9218 | 87299218 | B8320 | 2-3 | Fits all Category 2 lift arm pins; extra long | 1-7/16" | 1-1/8" | 3-1/4" | 5 | 0.5 |
| WLTLRB9219 | 87299219 | B8312 | 2-3 | Fits all Category 2 lift arm pins; 15/32" lynch pin hole | 1-7/16" | 1-1/8" | 2-1/2" | 5 | 0.4 |
| WLTLRB9220 | 87299220 | B8319 | 2-3 | Fits all Category 2 lift arm pins | 1-7/16" | 1-1/8" | 2-3/4" | 5 | 0.5 |
| WLTLRB9221 | HF141142 | 14042 6 | 1 | Adaptor bushing for Cat 1 Quick Hitch | — | 7/8" | 4" | 5 | 1.5 |
| WLTLRB9222 | HF141144 | 14044 4 | 1 | Quick Hitch adaptor bushing kit | — | 7/8" | 4" | 5 | 3.0 |
| WLTLRB9223 | HF141127 | 14027 7 | 2 | Adaptor bushing for Cat 2 Quick Hitch | — | 1-1/8" | 4" | 5 | 1.0 |
| WLTLRB9224 | HF141130 | 14030 7 | 2 | Quick Hitch adaptor bushing kit | — | 1-1/8" | 4" | 5 | 2.2 |
