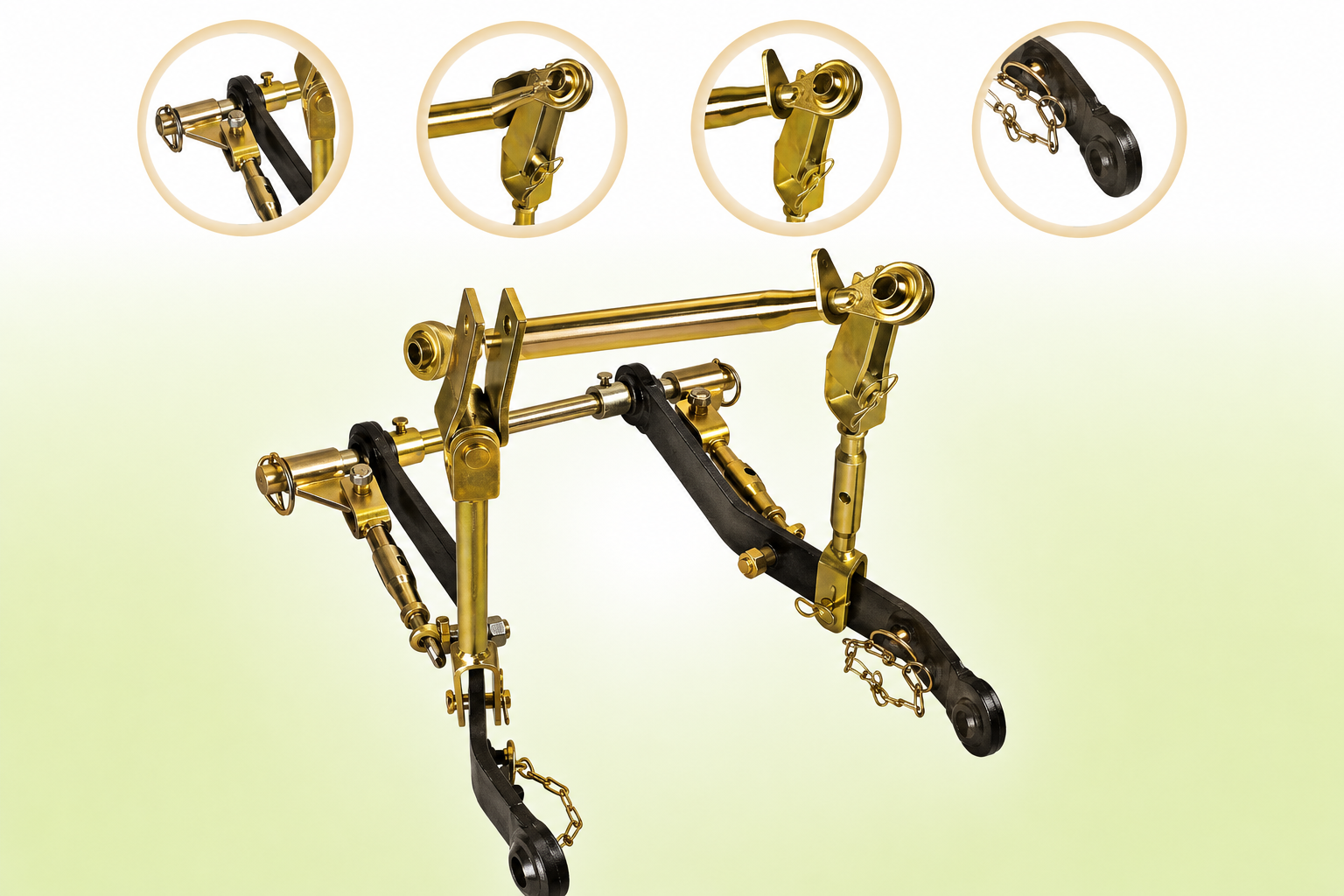

3-POINT LINKAGE KIT
ØBlack Paint or as per Customer’s Choice.
ØTrivalent Zinc Plating.
KUBOTA STYLE
Part Number: KK-01
List of Parts
List of Parts
Part Number |
Qty. |
| KK-11 | 2 |
| KK-12 | 2 |
| KK-13 | 1 |
| KK-14 | 1 |
| KK-15 | 1 |
| KK-16 | 1 |
| KK-17 | 1 |
ISEKI STYLE
Part Number: KK-02
List of Parts
List of Parts
Part Number |
Qty. |
| KK-11 | 2 |
| KK-12 | 2 |
| KK-13 | 1 |
| KK-14 | 1 |
| KK-15 | 1 |
| KK-16 | 1 |
| KK-18 | 1 |

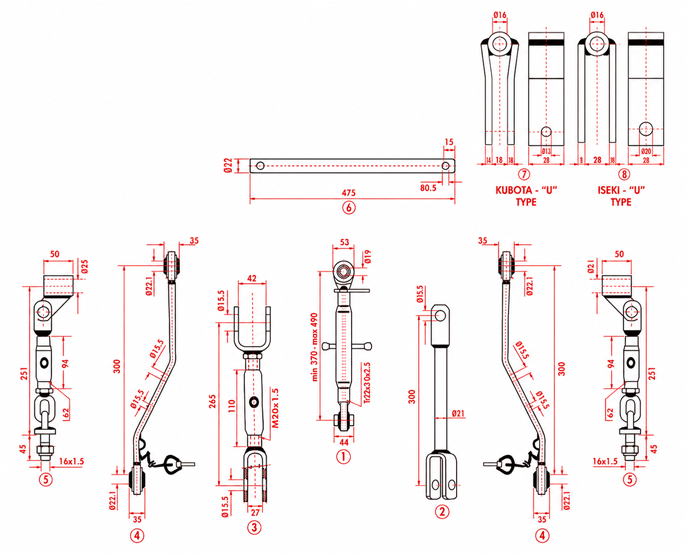

Parts Diagram / Dimensions
