LIFT ARMS AND PARTS
LIFT ARMS AND PARTS
Ø Category 1 lift arms and leveling assembly.
Weltech |
Reference |
Popular |
Description |
Package |
Weight |
| WLTLA335 | 87299729 | LA335 ECON9N555BDS |
Category 1 right- or left-hand forged lift arm; fits all Ferguson models, Ford 2N, 8N, 9N, NAA, Massey-Ferguson 35, 50, Oliver 550 and Oliver 3-point conversion, John Deere 1010; 7/8" pin holes; 31-3/4" ball centers; 34-1/2" overall length | 1 | 11.7 |
| WLTLA331 | — | LA331 | Replaced by La335 | 1 | 11.7 |
| WLTLA3320 | — | LA3320 | Category 1 forged right hand lift arm repair end; 7/8" pin hole; 5-3/4" overall length | 1 | 2.2 |
| WLTLA3321 | — | LA3321 | Category 1 forged left hand lift arm repair end; 7/8" pin hole; 5-3/4" overall length | 1 | 2.2 |
| WLTLA3322 | — | LA3322 | Category 1 forged right or left hand straight lift arm repair end; 7/8" pin hole; 4" overall length | 1 | 1.6 |
| WLTLA3323 | — | LA3323 | Category 1 forged bent lift arm repair end; 7/8" pin hole; 5-3/8" overall length | 1 | 2.0 |
| WLTLA3324 | — | LA3324 | Category 2 forged bent lift arm repair end; 1-1/8" pin hole; 5-1/2" overall length | 1 | 2.7 |
| WLTLA3325 | — | LA3325 | Category 2 forged right or left straight lift arm repair end; 1-1/8" pin hole; 5" overall length | 1 | 2.8 |
| WLTLA3330 | — | LA3330 | Category 3 forged straight lift arm repair end; 1-7/16" pin hole; 5-3/8" overall length | 1 | 3.0 |
| WLTSL152 | 87299731 | SL152 ECON577ABDS |
Category 1 lift arm leveling assembly; 18-1/2" closed; 25" open length; 7/8" NF thread diameter; replaces Ford NCA577A; left hand repair end no. RE158; right hand repair end no. RE159 | 1 | 6.0 |

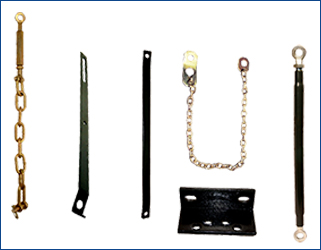

STABILIZER ARMS AND BRACKETS
STABILIZER ARMS AND BRACKETS
Ø Stabilizer arms increase the stability of the tractor lift arms.
Ø Stay straps for Category 1 tractors are used to maintain an implement at a set height.
Ø Replacement stabilizer arms for stabilizer kits and a variety of tractors.
Weltech |
Reference |
Popular |
Description |
Package |
Weight |
| WLTSAB9243 | 87299243 | DS511 | Upper stay strap for Category 1; fits all Ferguson models, Ford 2N, 8N, 9N, NAA, 600, 700, 800, 900, Oliver 550 and all Oliver 3-point conversions, Massey-Ferguson 35 and 50 | 1 | 2.8 |
| WLTSAB9246 | 87299244 | DS512 | Lower stay strap for Category 1; fits all Ferguson models, Ford 2N, 8N, 9N, NAA, 600, 700, 800, 900, Oliver 550 and all Oliver 3-point conversions, Massey-Ferguson 35 and 50 | 1 | 2.4 |
| WLTSAB9244 | 87299246 | SA621 | Right or left universal stabilizer arm; 7/8" pin holes on 31-9/16" centers | 1 | 6.0 |
| WLTSAB9249 | 87299247 | SA622 | Right or left universal stabilizer arm; replaces Massey-Ferguson ST96362358; 7/8" pin holes on 33-1/8" centers | 1 | 6.4 |
| WLTSAB9247 | 87299249 | SA6260 | Heavy-duty adjustable forged stabilizer arm; fits all Ferguson models, Ford 2N, 8N, 9N, NAA, 600, Massey-Ferguson 35, 50, 175, 65, 135, 150, 165, 180; adjustable from 28-1/2" to 36"; 7/8" pin holes; 7/8" NF threads | 1 | 6.0 |
| WLTSAB9253 | 87299252 | SA6251 | Left stabilizer arm; fits Ford 2000 and 3000; 7/8" pin holes on 31-5/8" centers | 1 | 6.0 |
| WLTSAB9252 | 87299253 | SA6252 | Right stabilizer arm; fits Ford 2000 and 3000; 7/8" pin holes on 31-5/8" centers | 1 | 6.0 |
| WLTSAB9256 | 87299254 | SA6256 | Universal stabilizer arm; 7/8" pin holes on 31-9/16" and 33-1/8" centers; 3 hole | 1 | 6.1 |
| WLTSAB9254 | 87299256 | SB631 | Right or left universal stabilizer bracket; Ferguson and Ford stabilizer kits; accommodates 87299259 (251406FDS) stabilizer stub pin | 1 | 3.0 |
| WLTSAB9750 | 87299750 | SPC6040300FDS | Pair of universal stabilizer chains for most Category 1 applications; yellow zinc plated | 1 | 14.0 |
