WELD ON HUBS
V / W / X - SERIES HUBS (To Fit Sprockets)

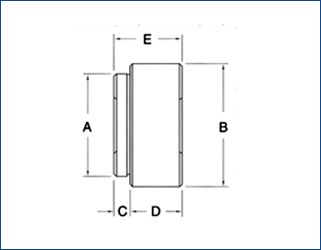

Ø Dimensions table (A, B, C, D, E) for V, W and X series hubs to fit sprockets.
|
A |
B |
C |
D |
E |
| V-SERIES HUBS To Fit V Type Sprockets | 1-1/8" | 1-7/16" | 7/16" | 3/4" | 1-3/16" |
| W-SERIES HUBS To Fit W Type Sprockets | 1-5/8" | 1-13/16" | 7/16" | 1" | 1-7/16" |
| X-SERIES HUBS To Fit X Type Sprockets | 2" | 2-1/2" | 7/16" | 1" | 1-7/16" |
V-SERIES HUBS (ROUND BORE WITH KEYWAY AND SET SCREW)
Ø High quality, precision-machined V, W, and X series weld-on hubs.
Ø Available in round, spline, square, stock, and hexagon bores.
Ø V-SERIES HUBS (Round Bore with Keyway and Set Screw).
Ø * Number in parenthesis indicates clamshell quantity.
WELTECH PART |
SKU |
UPC ITEM |
BORE |
BOX NO.* |
BULK |
| 80010300 | HS800103 | 80103 1 | 1/2" | -- | 0.38 |
| 80010400 | HS800104 | 80104 8 | 9/16" | -- | 0.38 |
| 80010500 | HS800105 | 80105 5 | 5/8" | 800105YAU (1) 90403 9 |
0.38 |
| 80010700 | HS800107 | 80107 9 | 3/4" | 800107YAU (1) 90405 3 |
0.32 |
| 80010900 | HS800109 | 80109 3 | 7/8" | 800109YAU (1) 90407 7 |
0.25 |
