WTFHB01 & WTFHB02 – FABRICATED HUB
WTCHB01 – CASTED HUB WITH SINTERED BUSHING
FABRICATED & CASTED HUB

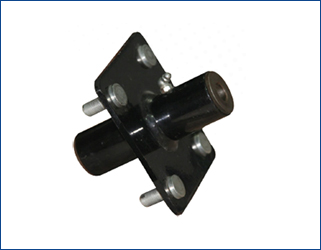

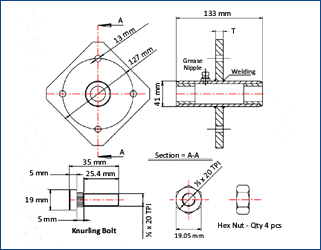

Ø WLTFHB01 & LWSFHB02 – Fabricated Hub.
Ø Available in two sizes: T = 6.00 mm & 9.50 mm.
Ø Knurling Bolt: 1/2 x 20 TPI.
Ø Hex Nut - Qty 4 pcs.
Ø Grease Nipple.

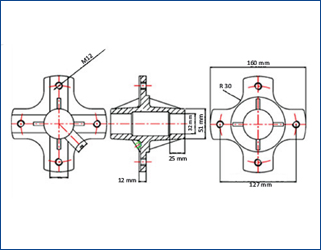

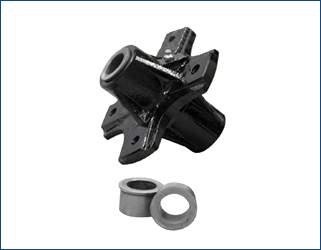

Ø WLTCHB01 – Casted Hub with Sintered Bushing.
Ø WLTCHB02 – Casted Hub with Taper Roller Bearings.
Weltech |
Type |
Notes |
| WLTFHB01 | Fabricated Hub | Available in two sizes: T = 6.00 mm & 9.50 mm. Knurling Bolt: 1/2 x 20 TPI. Hex Nut - Qty 4 pcs. Grease Nipple. |
| LWSFHB02 | Fabricated Hub | Available in two sizes: T = 6.00 mm & 9.50 mm. Knurling Bolt: 1/2 x 20 TPI. Hex Nut - Qty 4 pcs. Grease Nipple. |
| WLTCHB01 | Casted Hub | Casted Hub with Sintered Bushing. |
| WLTCHB02 | Casted Hub | Casted Hub with Taper Roller Bearings. |
