Rotary Cutter Components

D RING

D - RING

Ø Screw pin shackle type used for multiple hitches and crawler tractors.

Ø Do not exceed working load limit.

Ø Farm hardware is not for lifting.

Weltech Part No.	Model	Dim. A (Inches)	Dim. B (Inches)	Dim. C (Inches)	Clip Style	Max. Capacity S.W.L.	M.B.S.	Weight lbs
WLTSDRING01	3/8" D-Ring	3/8"	2-5/8"	2"	A	3,000	–	0.50
WLTSDRING02	1/2" D-Ring	1/2"	2-1/4"	2-1/2"	A or B	4,000	12,000	1.00
WLTSDRING03	5/8" D-Ring	5/8"	3"	3"	A or B	6,000	19,000	2.00
WLTSDRING04	5/8" D-Ring	5/8"	2-3/4"	3-1/2"	A or B	6,000	19,000	2.25
WLTSDRING05	3/4" D-Ring	3/4"	3"	3"	A	9,000	27,000	4.25
WLTSDRING06	1" D-Ring	1"	3"	3"	A or B	15,000	47,000	4.50
WLTSDRING07	1" D-Ring	1"	3"	4"	A or B	15,000	47,000	5.00
WLTSDRING08	1" D-Ring Bent at 50	1"	5"	6"	–	15,000	47,000	5.00

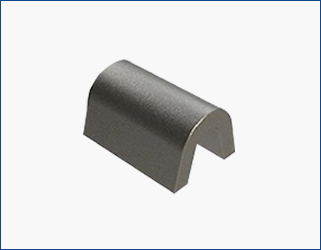

LASHING CLIP FOR D RING (FORGED)

Ø Screw pin shackle type used for multiple hitches and crawler tractors.

Ø Do not exceed working load limit.

Ø Farm hardware is not for lifting.

Weltech Part No.	Dim. A (Inches)	Dim. B (Inches)	Dim. C (Inches)	Dim. D (Inches)	Weight lbs
WLTSCLIP01F	1-1/8"	2"	3/8"	3/8"	1.00
WLTSCLIP02F	1-1/8"	2-1/4"	1-1/8"	1/2"	1.10
WLTSCLIP03F	3/4"	1-7/8"	3/4"	3/8"	0.66
WLTSCLIP04F	7/8"	1-7/8"	7/8"	3/8"	0.60

FORK

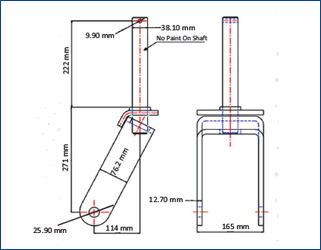

Ø No paint on shaft.

Ø Available in shaft size ØD = 38.10 mm & 31.75 mm.

Weltech Part No.	Description	Shaft Size ØD (mm)

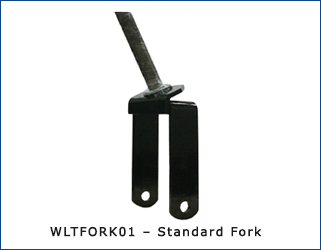

WLTFORK01	Standard Fork	38.10

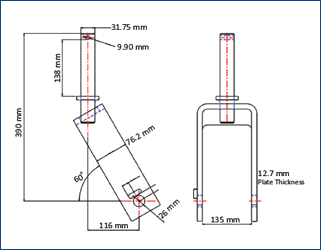

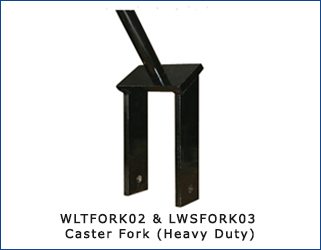

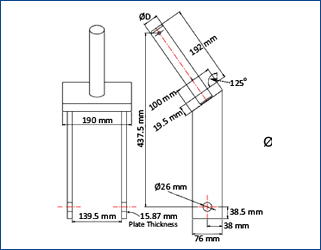

WLTFORK02	Caster Fork (Heavy Duty)	38.10 / 31.75
LWSFORK03	Caster Fork (Heavy Duty)	38.10 / 31.75

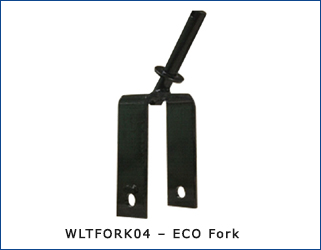

WLTFORK04	ECO Fork	31.75

FINISHING MOWER WHEEL ASSEMBLIES

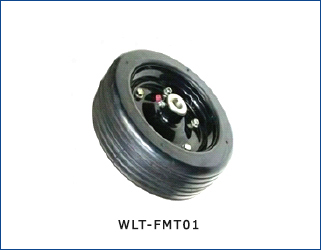

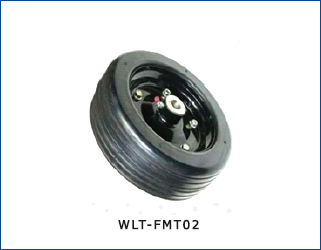

Ø WLT-FMT01: 10" SOLID MOULDED TIRE — BUSHING 1".

Ø WLT-FMT02: 10" SOLID MOULDED TIRE — BUSHING 3/4".

Ø WLT-FMT03: 10" SOLID MOULDED TIRE — BUSHING 3/4" with Stepdown SLEEVE O.D. 3/4" - I.D. 1/2", L 3.82".

Item #	WLT-FMT01	WLT-FMT02	WLT-FMT03
Tire Outer Diameter	10"/254mm	10"/254mm	10"/254mm
Tire Width	3.25"/82mm	3.25"/83mm	3.25"/83mm
Hub Type	Bushing	Bushing	Bushing
Hub Width	3.25"/82mm	3.25"/82mm	3.74"/95mm
Bushing Size	1"/25.4mm	0.75"/19mm	0.75"/19mm
Fork Width	5"	4" & 5"	4"
Weight	11 LBS / 5 KGS	11 LBS / 5 KGS	11 LBS / 5 KGS

FINISHING MOWER WHEEL ASSEMBLIES

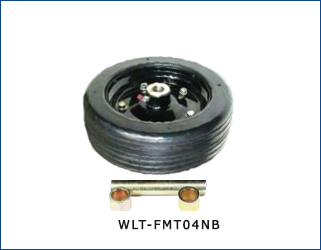

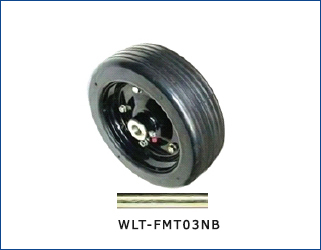

Ø WLT-FMT03NB: 10" SOLID MOULDED TIRE — BUSHING & Needle Bearing 3/4" with Stepdown SLEEVE O.D. 3/4" - I.D. 1/2", Length 3.82".

Ø WLT-FMT04NB: 10" SOLID MOULDED TIRE — BUSHING 3/4".

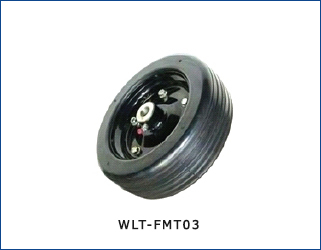

Ø WLT-FMT03: 10" SOLID MOULDED TIRE — BUSHING 5/8".

Item #	WLT-FMT03NB	WLT-FMT04NB	WLT-FMT03
Tire Outer Diameter	10"/254mm	10"/254mm	10"/254mm
Tire Width	3.25"/83mm	3.25"/83mm	3.25"/83mm
Hub Type	Bushing	Bushing	Bushing
Hub Width	3.74"/95mm	3.25"/82mm	3.25"/82mm
Bushing Size	0.75"/19mm	0.75"/19mm	0.625"/16mm
Fork Width	4"	5"	5"
Weight	11 LBS/5 KGS	11 LBS/5 KGS	11 LBS/5 KGS

FINISHING MOWER WHEEL ASSEMBLIES

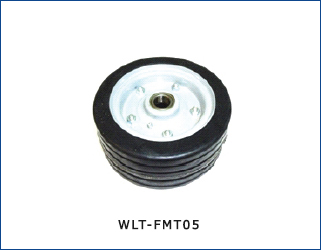

Ø WLT-FMT05: 10" SOLID MOULDED TIRE — SEAL BEARING 1".

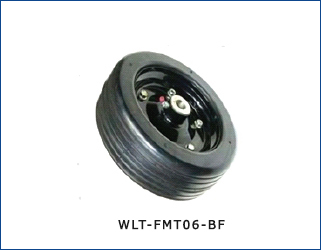

Ø WLT-FMT06-BF: 10x3.25" SOLID MOULDED TIRE — BUSHING 5/8".

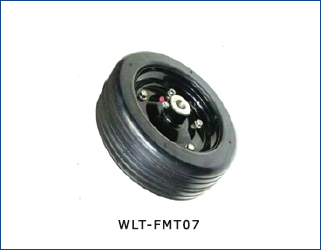

Ø WLT-FMT07: 10x3.25" SOLID MOULDED TIRE — BUSHING 1/2".

Item #	WLT-FMT05	WLT-FMT06-BF	WLT-FMT07
Tire Outer Diameter	10"/255mm	10"/254mm	10"/254mm
Tire Width	3.25"/83mm	3.25"/83mm	3.25"/83mm
Hub Type	Seal Bearing 1"	Bushing	Bushing
Hub Width	3.25"/82mm	3.74"/82mm	3.25"/82mm
Bushing Size	0.75"/19mm	0.625"/16mm	0.50"/12mm
Fork Width	5"	4.25"	4"
Weight	11 LBS / 5 KGS	11 LBS / 5 KGS	11 LBS / 5 KGS

FINISHING MOWER WHEEL ASSEMBLIES

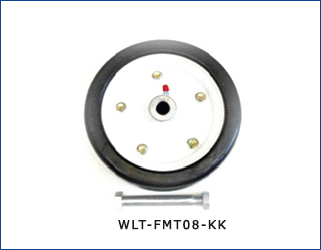

Ø WLT-FMT08-KK: 9" SOLID MOULDED TIRE — BUSHING.

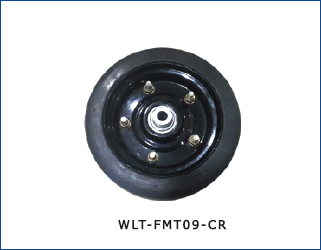

Ø WLT-FMT09-CR: 8.125" SOLID MOULDED TIRE — SEAL BEARING with Bush I.D. 1/2".

Item #	WLT-FMT08-KK	WLT-FMT09-CR
Tire Outer Diameter	9"/230mm	8.125"/206mm
Tire Width	3.25"/83mm	3"/76mm
Hub Type	Bushing	Seal Bearing with Bush I.D. 1/2"
Hub Width	3.80"/97mm	3.25"/83mm
Bushing Size	0.75"/19mm	0.50"/12mm
Fork Width	4"	3.125"
Weight	10 LBS / 4.5 KGS	10 LBS / 4.5 KGS

FINISHING MOWER WHEEL ASSEMBLIES

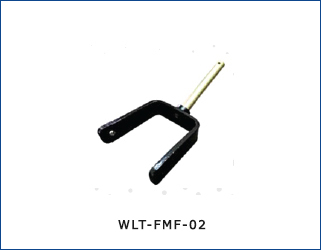

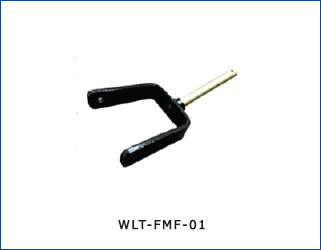

Ø WLT-FMF-01: FINISH MOWER FORK — INNER DIA 5".

Ø WLT-FMF-02: FINISH MOWER FORK — INNER DIA 4".

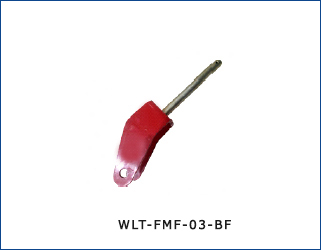

Ø WLT-FMF-03-BF: FINISH MOWER FORK — FITS FOR BEFCO.

Item #	WLT-FMF-01	WLT-FMF-02	WLT-FMF-03-BF
Yoke Diameter	1"/25.4mm	1"/25.4mm	1"/25.4mm
Yoke Overall Length	9.25"/235mm	9.25"/235mm	9.25"/241mm
Yoke Free Play	8.50"/215mm	8.50"/216mm	9"/229mm
Fork Height	5.25"/133mm	5.25"/133mm	5.25"/133mm
Fork Width Inner Dia	5"/127.5mm	4"/102mm	4.25"/108mm
Axle Hole	0.50"/12.5mm	0.50"/12.7mm	4.25"/108mm
Weight	6.6 LBS/3 KGS	6.6 LBS/3 KGS	8.8 LBS/4 KGS

FINISHING MOWER WHEEL ASSEMBLIES

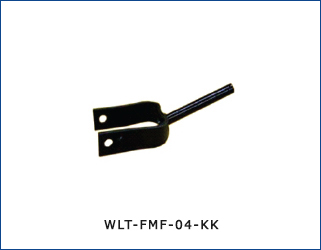

Ø WLT-FMF-04-KK: FINISH MOWER FORK — FITS FOR KING KUTTER INC.

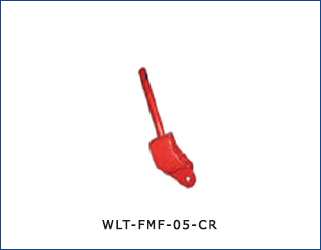

Ø WLT-FMF-05-CR: FINISH MOWER FORK — FITS FOR CARONI.

Item #	WLT-FMF-04-KK	WLT-FMF-05-CR
Yoke Diameter	1"/25.4mm	1"/25.4mm
Yoke Overall Length	8"/203mm	8"/203mm
Yoke Free Play	7.50"/190.5mm	7.875"/200mm
Fork Height	5.25"/133mm	5.79"/147mm
Fork Width Inner Dia	4"/101.6mm	3.25"/83mm
Axle Hole	4"/101.6mm	0.50"/12.7mm
Weight	6.6 LBS/3 KGS	5 LBS/2.25 KGS

FINISHING MOWER WHEEL ASSEMBLIES

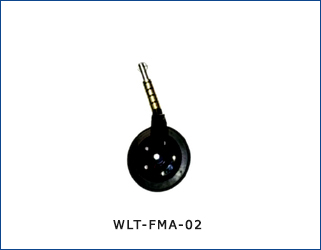

Ø 10x3.74" / 10x3.25" Finish Mower Assembly.

Ø Available with Bushing or Bushing & Needle Bearing.

Item #	WLT-FMA-01NB	WLT-FMA-02NB	WLT-FMA-02
Tire Outer Diameter	10"/254mm	10"/254mm	10"/254mm
Tire Width	3.25"/83mm	3.25"/83mm	3.25"/83mm
Hub Type	Bushing / Needle Bearing	Bushing / Needle Bearing	Bushing
Hub Width	3.25"/83mm	3.74"/95mm	3.74"/95mm
Yoke Length	9.25"	9.25"/235mm	9.25"/235mm
Free Play	8.50"/216mm	8.50"/216mm	8.50"/216mm
Yoke Diameter	1"/25.4mm	1"/25.4mm	1"/25.4mm
Fork Width	5"	4"	4"
Spacer	1” 4 Pcs & 0.50” 1 Pc	1” 4 Pcs & 0.50” 2 Pc	1” 4 Pcs & 0.50” 2 Pc
Weight	23 LBS / 10.5 KGS	23 LBS / 10.5 KGS	23 LBS / 10.5 KGS

FINISHING MOWER WHEEL ASSEMBLIES

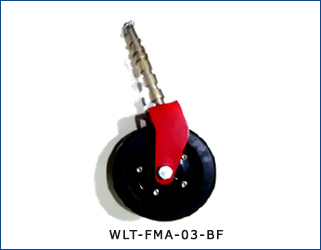

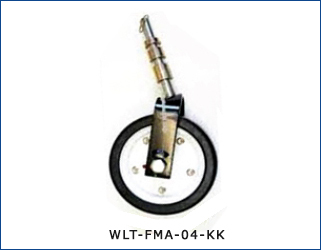

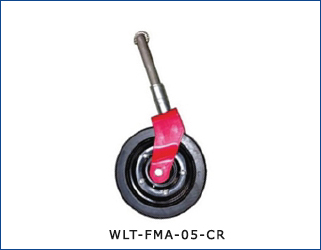

Ø Finish mower wheel assemblies for BEFCO, KING KUTTER & CARONI.

Item #	WLT-FMA-03-BF	WLT-FMA-04-KK	WLT-FMA-05-CR
Tire Outer Diameter	10"/254mm	9"/228.9mm	8.125"/206mm
Tire Width	3.25"/83mm	3.25"/83mm	3"/76mm
Hub Type	Bushing / Needle Bearing	Bushing	Internal Bushing
Hub Width	3.74"/95mm	3.80"/96.5mm	3.80"/96.5mm
Yoke Length	9.25"/235mm	8"/203mm	8"/203mm
Free Play	8.50"/216mm	7.50"/190mm	7.875"/200mm
Yoke Diameter	1"/25.4mm	1"/25.4mm	1"/25.4mm
Fork Width	4.25"	4"	3.25"
Spacer	1” 3 Pcs & 0.50” 2 Pc	1.1/2”, 1” & 1/2” each	1.1/2”, 1” & 1/2” each
Weight	23 LBS / 10.5 KGS	20 LBS / 9.60 KGS	20 LBS / 9.60 KGS

FINISHING MOWER WHEEL ASSEMBLIES

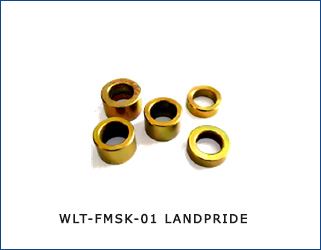

Ø WLT-FMSK-01: LANDPRIDE spacer kit.

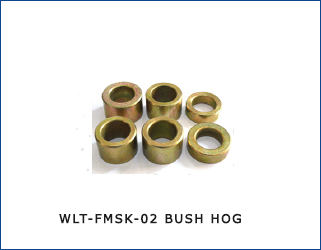

Ø WLT-FMSK-02: BUSH HOG spacer kit.

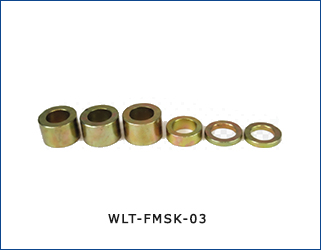

Ø WLT-FMSK-03: BEFCO spacer kit.

Item #	WLT-FMSK-01 LANDPRIDE	WLT-FMSK-02 BUSH HOG	WLT-FMSK-03
Spacer	1"- 4 Pcs & 0.50"- 1 Pc	1"- 4 Pcs & 0.50"- 2 Pcs	1"- 3 Pcs, 0.50"- 1 Pcs & 1/4"- 2 Pcs
Weigths	1.4 LBS / 0.700 KGS	1.65 LBS / 0.750 KGS	1.35 LBS / 0.600 KGS

FINISHING MOWER WHEEL ASSEMBLIES

Ø WLT-FMSK-01: LANDPRIDE spacer kit.

Ø WLT-FMSK-02: BUSH HOG spacer kit.

Ø WLT-FMSK-03: BEFCO spacer kit.

Item #	WLT-FMSK-01 LANDPRIDE	WLT-FMSK-02 BUSH HOG	WLT-FMSK-03
Spacer	1"- 4 Pcs & 0.50"- 1 Pc	1"- 4 Pcs & 0.50"- 2 Pcs	1"- 3 Pcs, 0.50"- 1 Pcs & 1/4"- 2 Pcs
Weigths	1.4 LBS / 0.700 KGS	1.65 LBS / 0.750 KGS	1.35 LBS / 0.600 KGS

FINISHING MOWER WHEEL ASSEMBLIES

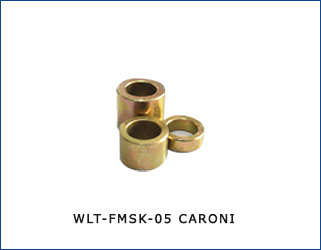

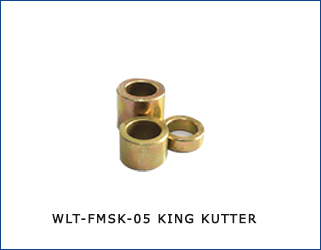

Ø Spacer kit options for KING KUTTER and CARONI.

Item #	WLT-FMSK-05 KING KUTTER	WLT-FMSK-05 CARONI
Spacer	1.1/2", 1” & 1/2" each 1 Pc	1.1/2", 1” & 1/2" each 1 Pc
Weigths	1 LBS / 0.450 KGS	0.770 LBS / 0.350 KGS

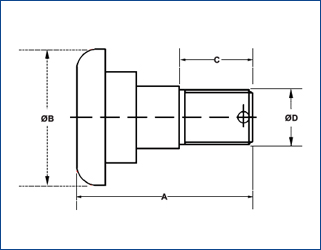

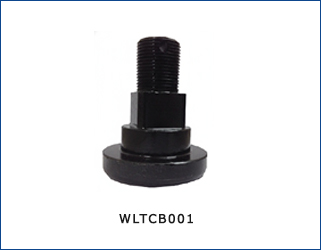

CUTTER BOLT

Ø Finish Auto Black or as per customer's requirement.

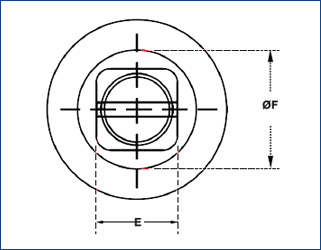

Weltech Part No.	Dim. A (mm)	Dia ØB (mm)	Dim. C (mm)	Dia ØD (Inches)	Dim. E (mm)	Dia ØF (mm)

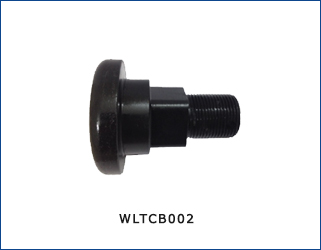

WLTCB001	98.5	76.2	41.2	1-1/4"	34.8	51
WLTCB002	92	76.2	34.8	1-1/4"	34.8	51
