Pulleys

Agriculture Machinery Parts

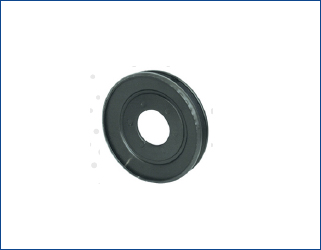

PULLEYS FOR A & B BELTS

PULLEYS FOR A & B BELTS

Ø Pulleys suitable for A & B section V-belts.

Ø * Number in parenthesis indicates clamshell quantity.

LINKWELL PART NUMBER	SKU NUMBER	PART NUMBER BULK	PART NUMBER BOX*	UPC ITEM NO. BULK BOX	OUTSIDE DIAM.	FITS HUB SERIES	FITS V-BELT STYLE	BULK WEIGHT (lbs.)
WLTPL85101	85010100	PL850101	850101YAU (1)	85101 2 / 90501 2	2-1/2”	V	A or B	0.25
WLTPL85102	85010200	PL850102	850102YAU (1)	85102 9 / 90502 9	3”	V	A or B	0.25
WLTPL85103	85010300	PL850103	850103YAU (1)	85103 6 / 90503 6	3-1/2”	W	A or B	0.5
WLTPL85104	85010400	PL850104	850104YAU (1)	85104 3 / 90504 3	4”	W	A or B	0.37
WLTPL85105	85010500	PL850105	850105YAU (1)	85105 0 / 90505 0	4-1/2”	W	A or B	0.52
WLTPL85106	85010600	PL850106	850106YAU (1)	85106 7 / 90506 7	5”	W	A or B	0.7
WLTPL85107	85010700	PL850107	850107YAU (1)	85107 4 / 90507 4	5-1/2”	W	A or B	0.96
WLTPL85108	85010800	PL850108	850108YAU (1)	85108 1 / 90508 1	6”	W	A or B	1.06
WLTPL85109	85010900	PL850109	850109YAU (1)	85109 8 / 90509 8	6-1/2”	W	A or B	1.1
WLTPL85110	85011000	PL850110	850110YAU (1)	85110 4 / 90510 4	7”	W	A or B	1.22
WLTPL85111	85011100	PL850111	850111YAU (1)	85111 1 / 90511 1	8”	W	A or B	1.55
WLTPL85112	85011200	PL850112	--	85112 8 / --	9”	W	A or B	2
WLTPL85113	85011300	PL850113	--	85113 5 / --	10”	W	A or B	2.6
WLTPL85114	85011400	PL850114	--	85114 2 / --	11”	W	A or B	2.6
WLTPL85115	85011500	PL850115	--	85115 9 / --	12”	W	A or B	3.42
WLTPL85116	85011600	PL850116	--	85116 6 / --	14”	W	A or B	4.65
WLTPL85117	85011700	PL850117	--	85117 3 / --	16”	W	A or B	5.9

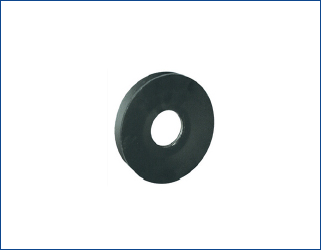

PULLEYS FOR C BELTS

PULLEYS FOR C BELTS

Ø Heavy-duty pulleys for C section V-belts.

LINKWELL PART NUMBER	SKU NUMBER	PART NUMBER	UPC ITEM NO.	OUTSIDE DIAM.	FITS HUB SERIES	FITS V-BELT STYLE	WEIGHT (lbs.)
WLTPL85206	85020600	PL850206	85206 4	6”	X	C	1.92
WLTPL85208	85020800	PL850208	85208 8	8”	X	C	3.28
WLTPL85210	85021000	PL850210	85210 1	10”	X	C	5.2
WLTPL85212	85021200	PL850212	85212 5	12”	X	C	7.52

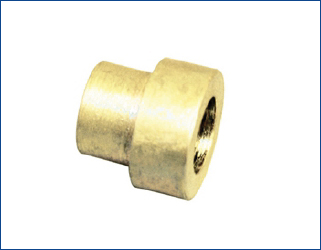

BUSHINGS AND PLUGS FOR IDLER PULLEYS

BUSHINGS AND PLUGS FOR IDLER PULLEYS

Ø Bushings and plugs for idler pulley assemblies.

Ø Precision machined for accurate fit and long service life.

WELTECH PART NUMBER	SKU NUMBER	PART NUMBER	UPC ITEM NO.	INNER DIAM.	SHOULDER LENGTH	OVERALL LENGTH	OUTER DIAM.	WEIGHT (lbs.)
WLTPB81010	8101000	B81010	81010 1	3/8”	0	0.4	5/8”	0.03
WLTPB81011	8101100	B81011	81011 8	3/8”	0.4	0.8	5/8”	0.06
WLTPB81012	8101200	B81012	81012 5	1/2”	0	0.4	5/8”	0.02
WLTPB81013	8101300	B81013	81013 2	1/2”	0.4	0.8	5/8”	0.05

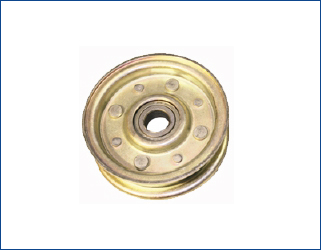

FLAT TYPE IDLER PULLEYS

FLAT TYPE IDLER PULLEYS

Ø Flat type idler pulleys for belt tensioning applications.

WELTECH PART NUMBER	SKU NUMBER	PART NUMBER	UPC ITEM NO.	OUTSIDE DIAM.	BORE SIZE	FLAT BORE WIDTH	WEIGHT (lbs.)
WLTPL85303	85030300	PL850303	85303 0	1-7/8”	3/8”	3/4”	0.25
WLTPL85304	85030400	PL850304	85304 7	2-1/4”	3/8”	1”	0.4
WLTPL85305	85030500	PL850305	85305 4	2-3/4”	5/8”	7/8”	0.55
WLTPL85306	85030600	PL850306	85306 1	3-1/4”	5/8”	3/4”	0.65
WLTPL85307	85030700	PL850307	85307 8	3-1/2”	5/8”	1”	0.7
WLTPL85308	85030800	PL850308	85308 5	4”	5/8”	3/4”	0.83
WLTPL85309	85030900	PL850309	85309 2	4”	5/8”	1-1/2”	0.88
WLTPL85301	85030100	PL850301	85301 6	4”	1/2”	1”	0.85
WLTPL85302	85030200	PL850302	85302 3	4”	5/8”	1”	0.8

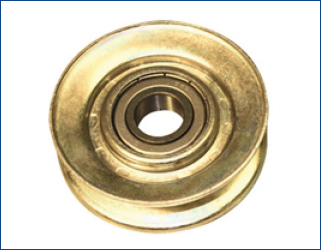

V-TYPE IDLER PULLEYS

V-TYPE IDLER PULLEYS

Ø V-type idler pulleys for V-belt tensioning applications.

Ø Suitable for multiple belt sizes as per catalogue specifications.

WELTECH PART NUMBER	SKU NUMBER	PART NUMBER	UPC ITEM NO.	OUTSIDE DIAM.	BORE SIZE	GROOVE WIDTH	BELT SIZES	WEIGHT (lbs.)
WLTPL85320	85032000	PL850320	85320 7	2-5/8”	1/2”	3/8”	4L, 3L, 3V	0.25
WLTPL853201	85032100	PL850321	85321 4	3”	1/2”	5/8”	3L	0.35
WLTPL85322	85032200	PL850322	85322 1	3”	5/8”	5/8”	5L, 4L, 5V	0.4
WLTPL85323	85032300	PL850323	85323 8	3-1/2”	5/8”	5/8”	5L, 4L	0.6
WLTPL85324	85032400	PL850324	85324 5	3-3/4”	5/8”	5/8”	5L, 4L	0.7
WLTPL85325	85032500	PL850325	85325 2	4”	5/8”	5/8”	5L, 4L	0.75
WLTPL85326	85032600	PL850326	85326 9	4-1/2”	5/8”	5/8”	5L, 4L	0.85
WLTPL85327	85032700	PL850327	85327 6	5”	5/8”	5/8”	5L, 4L	1.1
