SINGLE PRONG BALE SPEAR

SINGLE PRONG BALE SPEAR

Ø Skid steer or ALO/Euro mount.

Ø 39” or 49” length – single tine.

Ø Two stabilizer tines, 2,000 lbs capacity.

Ø Easy stabbing & removal.

PART #	WEIGHT	MOUNT	TINE LENGTH	USABLE LENGTH
BE-BSS39BO500G	148 LBS	SKID STEER	39”	34”
BE-BSS49BO500G	150 LBS	SKID STEER	49”	44”
BE-BSS39EUROG	148 LBS	ALO / EURO	39”	34”
BE-BSS49EUROG	150 LBS	ALO / EURO	49”	44”

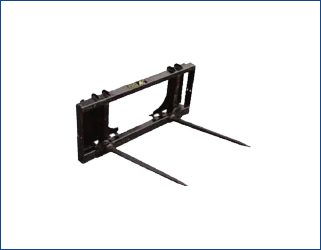

DOUBLE PRONG BALE SPEAR

DOUBLE PRONG BALE SPEAR

Ø Skid steer or ALO/Euro mount.

Ø 39” or 49” length – double tines.

Ø Two stabilizer tines, 2,000 lbs capacity.

Ø Works with round or square bales.

Ø 30” TINE SPACING.

PART #	WEIGHT	MOUNT	TINE LENGTH	USABLE LENGTH
BE-BSD39BO500G	176 LBS	SKID STEER	39”	34”
BE-BSD49BO500G	180 LBS	SKID STEER	49”	44”
BE-BSD39EUROG	176 LBS	ALO / EURO	39”	34”
BE-BSD49EUROG	180 LBS	ALO / EURO	49”	44”

BUSHINGS AND PLUGS FOR IDLER PULLEYS

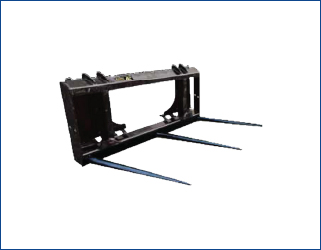

TRIPLE PRONG BALE SPEAR

Ø Skid steer or Euro mount.

Ø Handles 4’ × 4’ × 8’ bales.

Ø 23” spacing, 2,000 lbs capacity.

PART #	WEIGHT	MOUNT	TINE LENGTH	USABLE LENGTH
BE-BST39BO500G	150 LBS	SKID STEER	39”	34”
BE-BST49BO500G	154 LBS	SKID STEER	49”	44”
BE-BST39EUROG	150 LBS	ALO / EURO	39”	34”
BE-BST49EUROG	154 LBS	ALO / EURO	49”	44”

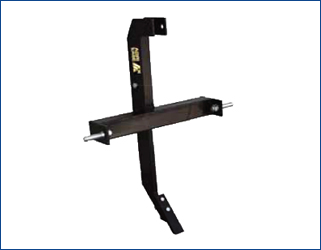

SUBSOILER

SUBSOILER

PART #	WEIGHT	HP RATING	DEPTH
SS1RG	98 LBS	UP TO 40 HP	22” PENETRATION

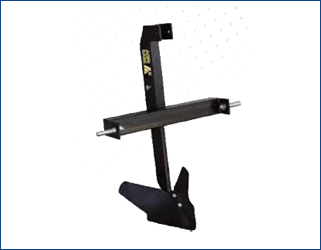

HILLER/ MIDDLEBUSTER

HILLER / MIDDLEBUSTER

PART #	WEIGHT	HP RATING
MB15G	110 LBS	UP TO 40 HP
