Chain Assemblies
Ø Zinc Plated Electro Galvanized
Ø Short Loop Style
Specifications
| Part# | Chain | Working Lbs (WLL) | Width | Length |
|---|---|---|---|---|
| WLT-64.200.018 | G30 (System 3) | 375 | 1/8" (4mm) | 100 ft |
| WLT-64.200.316 | G30 (System 3) | 750 | 3/16" (5.5mm) | 100 ft |
| WLT-64.200.025 | G30 (System 3) | 1,250 | 1/4" (7.0mm) | 100 ft |
| WLT-64.200.516 | G30 (System 3) | 1,900 | 5/16" (8.0mm) | 100 ft |
| WLT-64.200.038 | G30 (System 3) | 2,650 | 3/8" (10.0mm) | 100 ft |
| WLT-64.200.050 | G30 (System 3) | 4,500 | 1/2" (13.5mm) | 100 ft |
| WLT-64.300.025 | G43 (System 4) | 2,600 | 1/4" (7.0mm) | 100 ft |
| WLT-64.300.516 | G43 (System 4) | 3,250 | 5/16" (8.0mm) | 100 ft |
| WLT-64.300.038 | G43 (System 4) | 5,400 | 3/8" (10.0mm) | 100 ft |
| WLT-64.300.050 | G43 (System 4) | 9,200 | 1/2" (13.5mm) | 100 ft |
| WLT-64.100.025 | G70 (System 7) | 3,150 | 1/4" (7.0mm) | 400 ft |
| WLT-64.100.516 | G70 (System 7) | 4,700 | 5/16" (8.0mm) | 200 ft |
| WLT-64.100.038 | G70 (System 7) | 6,600 | 3/8" (10.0mm) | 200 ft |
| WLT-64.100.050 | G70 (System 7) | 11,300 | 1/2" (13.5mm) | 100 ft |
* System 8 & Hot Dipped Galvanized Chain Available Upon Request.

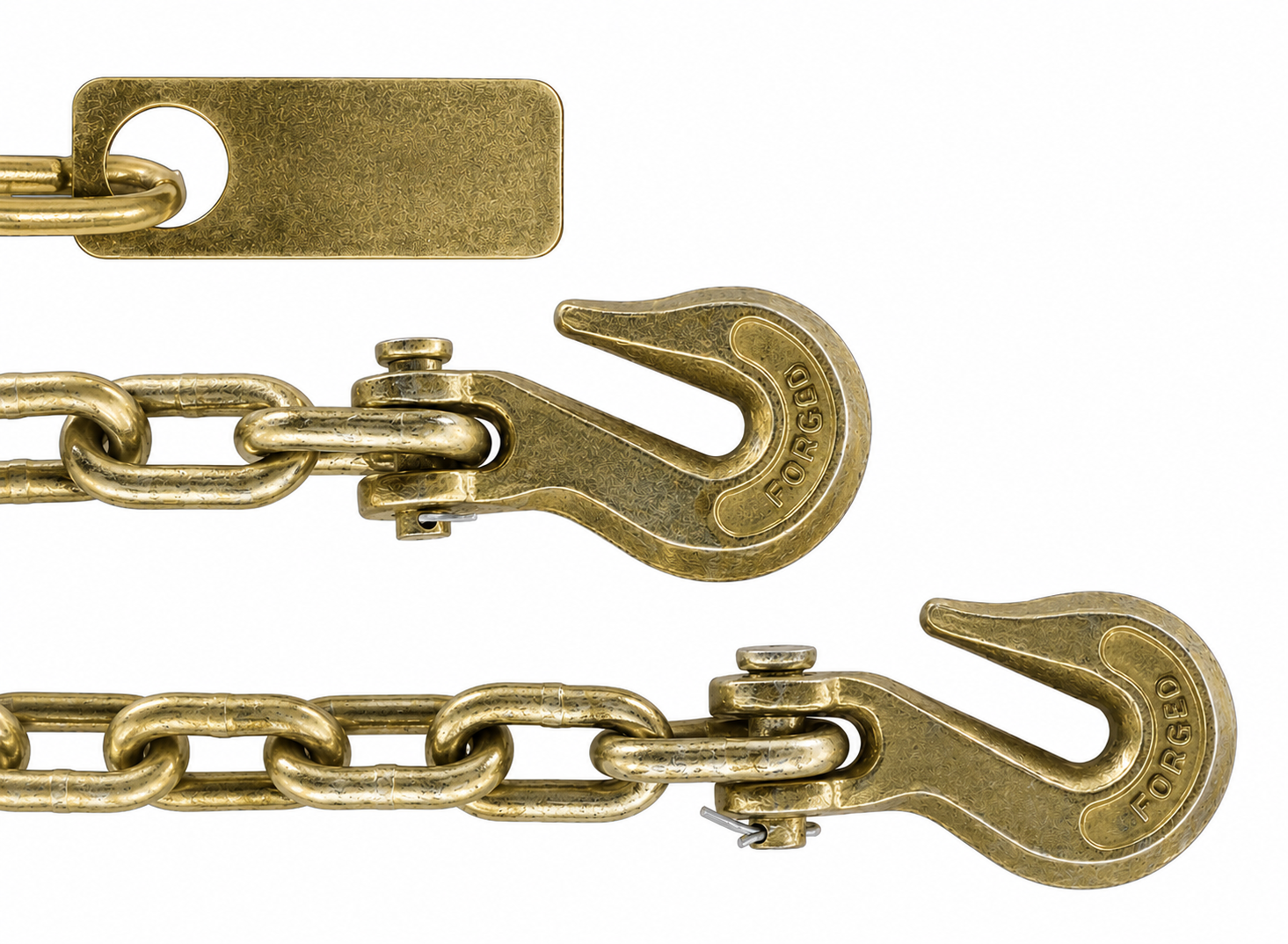

Chain Assemblies
Ø System 7 Transport Grade (G70)
Specifications
| Part# | Chain | Working Lbs. | Size |
|---|---|---|---|
| WLT-64.016.516 | G70 | 4,700 | 5/16" x 16 ft with hooks |
| WLT-64.016.038 | G70 | 6,600 | 3/8" x 16 ft with hooks |
| WLT-64.020.516 | G70 | 4,700 | 5/16" x 20 ft with hooks |
| WLT-64.020.038 | G70 | 6,600 | 3/8" x 20 ft with hooks |
| WLT-64.025.038 | G70 | 6,600 | 3/8" x 25 ft with hooks |
| WLT-64.020.005 | G70 | 11,300 | 1/2" x 20 ft with hooks |

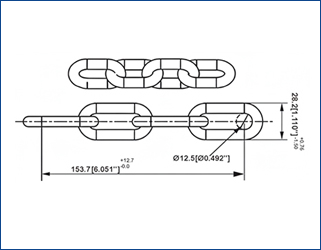

TRAILER 5/16" GRADE 30 CHAIN (6" LONG)
TRAILER 5/16" GRADE 30 CHAIN (6" LONG)
Ø Material: C10 / C20 / EN8
Ø Finish: White Zinc Plated (5µm Min.)
Ø Weight of complete chain: 0.184 Kgs
Code |
Specification |
| WLT-104 | Ø8 (0.315") Grade 30 Zinc Chain × 6" Long |

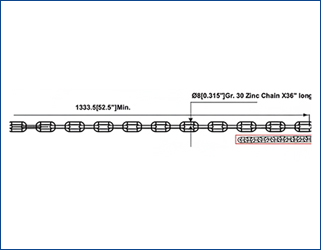

TRAILER CHAIN 5/16" – 36" LONG
TRAILER CHAIN 5/16" – 36" LONG
Ø Material: M.S.
Ø Finish: White Zinc Plated
Ø Min. length: 1333.5 mm (52.5")
Ø Weight of complete chain: 1.012 Kgs
Code |
Specification |
| WLT-52913 | Ø8 (0.315") Grade 30 Zinc Chain × 36" Long |

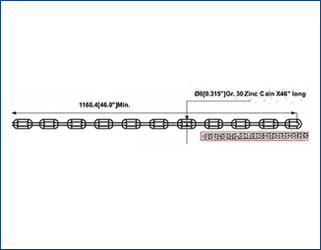

TRAILER CHAIN 5/16" – 46" LONG
TRAILER CHAIN 5/16" – 46" LONG
Ø Material: M.S.
Ø Finish: White Zinc Plated
Ø Min. length: 1168.4 mm (46.0")
Ø Weight of complete chain: 1.276 Kgs
Code |
Specification |
| WLT-52895 | Ø8 (0.315") Grade 30 Zinc Chain × 46" Long |

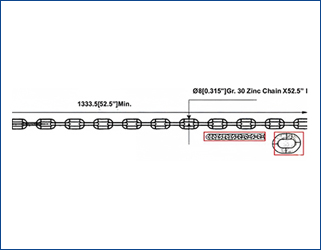

TRAILER CHAIN 5/16" – 52.5" LONG
TRAILER CHAIN 5/16" – 52.5" LONG
Ø Material: M.S.
Ø Finish: White Zinc Plated
Ø Min. length: 1333.5 mm (52.5")
Ø Weight of complete chain: 1.452 Kgs
Code |
Specification |
| WLT-52923 | Ø8 (0.315") Grade 30 Zinc Chain × 52.5" Long |

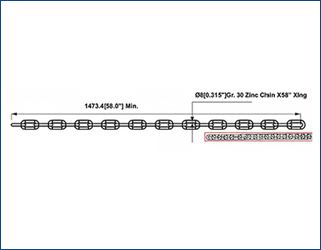

TRAILER CHAIN 5/16" – 58" LONG
TRAILER CHAIN 5/16" – 58" LONG
Ø Material: M.S.
Ø Finish: White Zinc Plated
Ø Min. length: 1473.4 mm (58.0")
Ø Weight of complete chain: 1.584 Kgs
Code |
Specification |
| WLT-52927 | Ø8 (0.315") Grade 30 Zinc Chain × 58" Long |
