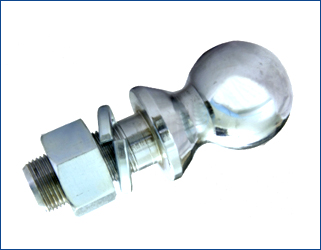

HITCH BALLS
HITCH BALLS
Ø Class I, II, III and IV chrome hitch balls.
Weltech Part No. |
Reference Number |
Popular Code |
Description |
Package Qty. |
Bulk Weight (lbs.) |
| WLTHB100504 | 87299456 | HB100504 | 1-7/8" chrome hitch ball with 3/4" stud; 1-3/4" stud length; VESC Class I | 1 | 1.6 |
| WLTHB100602 | 87299458 | HB100602 | 2" chrome hitch ball with 3/4" bolt; economy type; VESC Class I | 1 | 1.8 |
| WLTHB100604 | 87299459 | HB100604 | 2" chrome hitch ball with 3/4" stud; 1-3/4" stud length; VESC Class II | 1 | 1.8 |
| WLTHB100608 | 87299460 | HB100608 | 2" chrome hitch ball with 1" stud; 2-1/8" stud length; VESC Class III | 1 | 2.5 |
| WLTHB100703 | 87299461 | HB100703 | 2-5/16" chrome hitch ball with 1-1/4" stud; 2-1/8" stud length; VESC Class IV | 1 | 4.0 |
| WLTHB100705 | 87299462 | HB100705 | 2-5/16" chrome hitch ball with 1-3/8" stud; 2-31/64" stud length; VESC Class IV | 1 | 4.4 |
| WLTHB100509 | — | HB100509 | Hitch Ball cover: fits 1-7/8" and 2" balls; flexible gray vinyl | 1 | 0.1 |

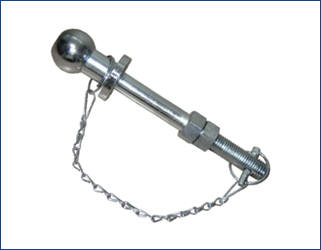

PIN BALL
PIN BALLS
Ø Chrome plated with chain, linch pin, nut & washer.

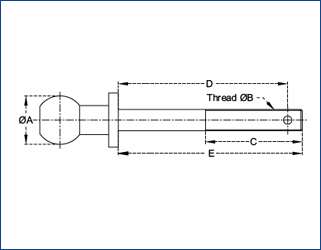

Weltech Part No. |
Reference Number |
Pin Dia ØA (mm) |
Thread Dia ØB (Inches) |
Dim C (mm) |
Dim D (mm) |
Dim E (mm) |
Package Qty. |
| WLTSHB78162 | S-3210 | 50 | 7/8" | 100 | 162 | 190 | 1 |
| WLTSHB1162 | S-3211 | 50 | 1" | 100 | 162 | 190 | 1 |
