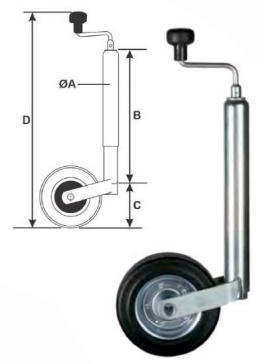

Trailer Standard Jockey Wheel
Ø High Quality, OEM Standards.
Ø Easy Installation.
Ø Finish : Electro Plating.
We offer wide variety of Jockey Wheel with solid tyres and moulded Plastic handles to reduce the effort of operating the device. Our Jockey Wheels are load tested and developed as per standards set worldwide.
| Code | Pipe Diameter (ØA) | Wheel Size | Pipe Length | B | C | D |
|---|---|---|---|---|---|---|
| WLTJW001 | 35 | 160x43 | 220 | 310 | 100 | 465 |
| WLTJW002 | 42 | 200x50 | 195 | 390 | 120 | 590 |
| WLTJW003 | 48 | 200x50 | 195 | 390 | 120 | 590 |
| WLTJW004 | 48 | 250x85 | 175 | 420 | 150 | 625 |
| WLTJW005 | 60 | 255x80 | 400 | 430 | 150 | 720 |
| WLTJW006 | 60 | 220x70 | 500 | 560 | 350 | 1060 |
Trailer Automatic Jockey Wheel
Ø High Quality, OEM Standards.
Ø Easy Installation.
Ø Finish : Electro Plating.
| Code | Pipe Diameter (ØA) | Wheel Size | Capacity (Kg) | B |
|---|---|---|---|---|
| WLTJWA001 | 60 | 200x60 | 300 | 470 |
| WLTJWA002 | 60 | 200x60 | 300 | 570 |

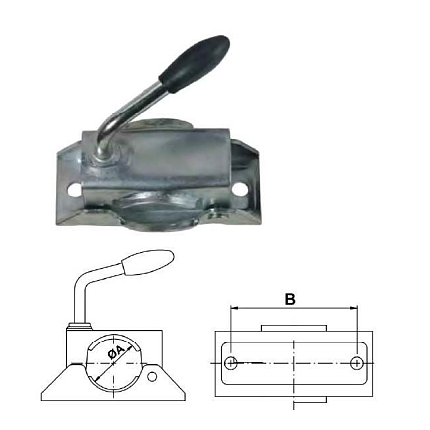

Trailer Jockey Wheel Clamp
Ø Fit for all type of Jockey Wheel Ø35, Ø48 & Ø60.
Ø Easy Installation.
| Code | ØA | B | Load |
|---|---|---|---|
| WLTJWC0035 | 35 | 105 | 250Kg |
| WLTJWC0048 | 48 | 105 | 250Kg |
| WLTJWC0060 | 60 | 105 | 250Kg |

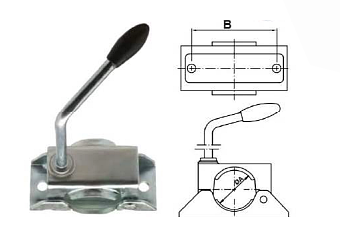

Trailer Jockey Wheel Clamp - Long Handle
Ø Fit for all type of Jockey Wheel Ø35, Ø48 & Ø60.
Ø Easy Installation.
| Code | ØA | B | Load |
|---|---|---|---|
| WLTJWC0035 | 35 | 105 | 250Kg |
| WLTJWC0048 | 48 | 105 | 250Kg |
| WLTJWC0060 | 60 | 105 | 250Kg |

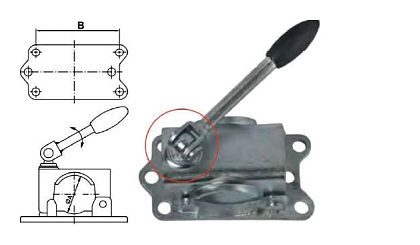

Trailer Jockey Wheel Clamp - With Moving Handle
Ø Fit for all type of Jockey Wheel Ø35, Ø48 & Ø60.
Ø Easy Installation.
| Code | ØA | B | Load |
|---|---|---|---|
| WLTJWCM0035 | 35 | 105 | 250Kg |
| WLTJWCM0048 | 48 | 105 | 250Kg |
| WLTJWCM0060 | 60 | 105 | 250Kg |
