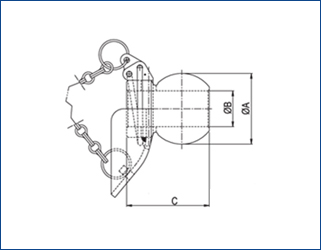

GUIDE CONE BALL HARDENED
Weltech Part Number |
Dia. ØA (mm) |
Dia. ØB (mm) |
Dim. C (mm) |
Linch Pin Size |
Ref. Number |
WTGCB4422 |
44 |
22.1 |
54 |
11 |
01450 |
WTGCB5622 |
56 |
22.1 |
66 |
11 |
|
WTGCB5628 |
56 |
28.4 |
66 |
11 |
01451 |
WTGCB5637 |
56 |
37.1 |
66 |
11 |
01452 |
WTGCB6428 |
64 |
28.4 |
66 |
11 |
|
WTGCB6437 |
64 |
37.1 |
72 |
15 |
|
WTGCB6437-11 |
64 |
37.1 |
72 |
11 |
GUIDED CONE BUSH
Weltech Part Number |
Dia. ØA (mm) |
Dia. ØB (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dim. E (mm) |
Ref. Number |
WTGCBB-472825 |
45 |
28.4 |
24 |
24 |
24 |
10107 |

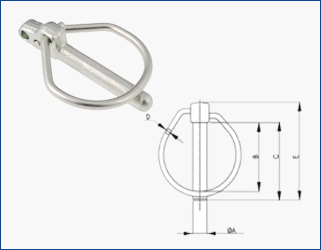

LINCH PINS-FORGED
Weltech Part Number |
Dia. ØA (mm) |
Dia. ØB (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dim. E (mm) |
Ref. Number |
WTLPF-1148 |
11 |
48 |
52 |
4 |
70 |
0068 |
WTLPF-1548 |
15 |
56 |
60 |
4 |
82 |
37943 |
